Tire Pressure to Weight Chart: A Practical Guide
Learn how to use a tire pressure to weight chart to set accurate tire pressures based on vehicle weight, payload, and load distribution. Practical steps, examples, and safety tips from Tire Pressure Tips.
A tire pressure to weight chart helps you estimate the right tire pressures based on vehicle weight, payload, and load distribution. Start with the curb weight, add payload, then adjust for axle load and temperature before setting pressures. Compare your targets with manufacturer specs and TPMS readings for best results.
Understanding the tire pressure to weight chart
A tire pressure to weight chart is a practical tool that translates a vehicle’s weight distribution into recommended tire pressures. It considers curb weight, payload, and axle load so you can tailor pressures for normal driving, heavy loads, or fuel‑efficiency goals. According to Tire Pressure Tips, charts serve as reliable starting points when you don’t have exact per‑tire data from the manufacturer. They help you balance grip, tire wear, and fuel economy, reducing the guesswork that comes with hauling a full load. Keep in mind that the chart is a guide and must be cross‑checked with official specs and TPMS readings for your specific model.
toolsMaterialsNeededNotesInBodyBlock1ForThisSectionトラックバックнять
Tools & Materials
- Digital tire pressure gauge(Choose a gauge with at least 0.5 psi precision; digital readouts reduce rounding errors.)
- Owner’s manual or vehicle weight specs(Look for GVWR, axle weights, and recommended tire pressures from the manufacturer.)
- Notebook or digital device for recording values(Document curb weight, payload, target front/rear pressures, and any adjustments.)
- Tire inflator or air compressor (optional)(Useful for making quick adjustments after reading pressures.)
- Scale access (optional)(If you can access a vehicle scale, it helps verify actual axle loads.)
Steps
Estimated time: 30-60 minutes

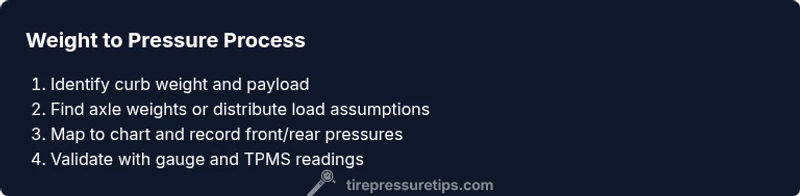

- 1
Gather baseline vehicle data
Collect the curb weight from the manufacturer data plate or owner’s manual. Note the GVWR and any available axle weight figures. This establishes the baseline for your chart mapping.
Tip: Document where you found each datum (manual page or VIN lookup) for future reference. - 2
Estimate payload and load distribution
Estimate or measure the payload you typically carry (passengers, cargo, or accessories). If you have access to individual axle weights, note front and rear loads to inform the chart mapping.
Tip: If you don’t have precise axle weights, use typical payload ranges and check TPMS after adjustments. - 3
Locate the manufacturer's tire pressures
Open the owner’s manual or door placard to find the recommended cold pressures for both front and rear tires. These serve as the anchor points before adjustments for weight.
Tip: Always measure cold tires to avoid inflated readings from recent driving. - 4
Map weight to front/rear pressures on the chart
Using the weight data, locate the corresponding front and rear pressures on your tire pressure to weight chart. Record these targets as your baseline under light to moderate loads.
Tip: If your vehicle uses different front/rear weights, isolate the chart mappings for each axle. - 5
Record final targets and test
Inflate or deflate to the charted pressures and verify with your digital gauge. Confirm readings with TPMS and note any discrepancies between physical readings and electronic signals.
Tip: Repeat tests after a brief drive to account for tire heat and circumferential pressure shifts. - 6
Adjust for temperature and real-world conditions
Cold weather lowers tire pressure and can shift load distribution. Recheck pressures in the morning and adjust toward chart targets as needed.
Tip: Avoid overcorrecting for temporary temperature swings; rely on steady readings across multiple checks. - 7
Validate safety margins and document
Ensure pressures stay within the tire’s maximum pressure rating printed on the sidewall and within manufacturer recommendations. Document the final targets and plan periodic rechecks.
Tip: Set a reminder to recheck pressures after heavy loading or seasonal changes.
Frequently Asked Questions
What is a tire pressure to weight chart and why use one?
A tire pressure to weight chart translates total weight and axle load into recommended tire pressures, helping you balance grip, wear, and fuel economy. It’s a practical starting point when per‑tire specs aren’t readily available.
A tire pressure to weight chart converts weight into recommended tire pressures to improve handling and longevity.
Do I need precise axle weights to use the chart?
Precise axle weights make the chart more accurate, but you can start with estimated payloads and adjust after testing. If axle data is unavailable, use manufacturer front/rear pressures as anchors and refine with real readings.
Precise axle weights help, but you can start with estimates and refine via testing.
Can TPMS readings replace chart calculations?
TPMS readings are a valuable safety check but may not reflect your load-specific targets. Use them to confirm you’re near your chart targets, not as a sole guide.
TPMS is important, but your chart targets still guide the correct pressures.
How often should I recheck pressures when carrying a load?
Recheck pressures when your load changes (more passengers or cargo), after long drives, and with seasonal temperature shifts. If you notice TPMS alerts, recheck as soon as practical.
Check whenever the load changes or temperature shifts, and if TPMS alerts you.
What if my tires are different sizes from the chart?
If tires differ in size from the chart, use the tire size’s own recommended pressures and adjust for weight per axle as needed. Consult the manual for cross‑compatibility guidance.
Different sizes require using their own pressures and adjusting for weight.
Are cold-weather conditions dangerous for tire pressure?
Cold weather can lower tire pressure, reducing load-caring capacity. Recheck and adjust toward chart targets when temperatures drop.
Cold weather lowers pressure; recheck against targets.
Watch Video
What to Remember
- Map weight to tires using the chart before inflating
- Always verify with official manufacturer specs
- Account for temperature before finalizing pressures
- Record targets and recheck under load changes
- Use TPMS in conjunction with gauge readings
