Wheel Pressure Sensor Guide: Tire Pressure Monitoring Systems (TPMS) Explained
Learn how wheel pressure sensors (TPMS) work, how to diagnose faults, replace sensors, and reset the system. Practical, step-by-step guidance to keep tires properly inflated and vehicles safe on all road conditions.
This guide shows you how to check, diagnose, and service wheel pressure sensor issues on most passenger vehicles. You’ll learn sensor locations, how to interpret TPMS warnings, and practical steps for testing, replacing, or resetting sensors. Gather a basic tool kit, a tire gauge, and your vehicle’s manual before you start.
Why wheel pressure sensors matter in modern vehicles
According to Tire Pressure Tips, wheel pressure sensors are a core part of modern tire management. They monitor air pressure in each tire and feed data to the TPMS, which alerts you when pressure falls below a safe threshold. This system improves fuel efficiency, reduces tire wear, and helps prevent blowouts. Even when the dashboard light is not illuminated, sensor health affects accurate readings; aging batteries, damaged sensor stems, or corroded valve stems can gradually skew numbers. You rely on accurate tire pressure when driving in winter storms, hauling loads, or cruising on highways. Direct TPMS sensors include a battery-powered unit mounted on the wheel, communicating via radio to the control module. Indirect systems use ABS wheel-speed data to infer pressure changes. Both types are common; your approach depends on your vehicle and local conditions. Understanding the wheel pressure sensor landscape empowers you to keep tires safe and efficient across seasons.
How wheel pressure sensor systems (TPMS) work
Modern TPMS can be either direct or indirect. Direct TPMS uses a sensor mounted in each wheel that broadcasts pressure data and battery status to the vehicle’s ECU. Indirect TPMS doesn’t measure pressure with a sensor in the tire; instead, it infers low pressure by detecting changes in wheel speed and rotational data via the ABS system. Battery life, sensor placement, and tire mounting impact accuracy. When pressures differ significantly from the manufacturer’s target placard, the system warns you with a dashboard light or a message on the display. Both systems aim to prevent under-inflation, which saves fuel, extends tire life, and improves handling. The Tire Pressure Tips team emphasizes choosing a system compatible with your car and staying on top of recalibration and maintenance so readings stay trustworthy.
Locating and identifying wheel pressure sensors on your vehicle
On most passenger cars, you’ll find a TPMS sensor mounted behind each wheel’s valve stem or integrated with the wheel itself in a direct system. Indirect TPMS relies on the ABS wheel-speed sensors, so there may be no hardware on the wheel itself—only the software that monitors your tires. To locate sensors, start with your owner’s manual or a service guide for your model. If you see four valve stems, you probably have direct sensors; if there are no external stems or you know you have a recent ABS upgrade, you may be dealing with an indirect setup. When inspecting, look for corrosion around the valve stem, damaged grommets, or cracked sensor housings, all of which can cause false readings.
Diagnosing common wheel pressure sensor faults
Faults can show as flaky readings, sporadic warnings, or a persistent dashboard light. Common issues include a dead sensor battery in direct TPMS, a cracked or corroded valve stem, a damaged sensor housing, or improper relearn after tire service. Indirect TPMS faults often stem from ABS module issues or inconsistent wheel-speed data rather than a physical sensor. Before you blame the tire, perform a quick check with a TPMS-compatible scan tool to pull fault codes and sensor IDs. Inaccurate readings can mislead you into over- or under-inflating, which hurts mileage and tire wear. If the readings don’t align with a physical psi check by a reliable gauge, you likely have a sensor problem.
Replacing, resetting, and maintaining wheel pressure sensors
Replacement and reset procedures vary by vehicle and system type. Direct TPMS requires removing the wheel and installing a new sensor with proper sealing and torque on the valve stem. After installation, you’ll typically relearn the sensors using a scan tool or the car’s built-in sequence, then verify all tires are at the manufacturer-recommended pressure when cold. Indirect TPMS relies on software recalibration after service; a full relearn may involve driving at a specific speed or performing a system reset via the vehicle’s settings menu. Regular maintenance includes inspecting valve stems, replacing damaged grommets, and using a high-quality tire gauge to verify pressures between services. The goal is consistent, accurate readings that reflect real tire pressure, ensuring safe braking, steering, and fuel efficiency.
Practical considerations and safety reminders
Tire pressure and TPMS accuracy are influenced by temperature, speed, and load. Colder weather lowers tire pressure, so check pressures more frequently in winter. If you notice inconsistent readings after a service, recheck pressures and ensure sensors were seated properly during installation. For accuracy, always measure cold tires, then set them to the recommended cold inflation pressure. If you suspect a damaged sensor, replacing the sensor might be more reliable than attempting a quick patch. When in doubt, consult a professional to avoid accidental damage to the wheel or TPMS electronics.
Tools & Materials
- Digital tire pressure gauge(Accurate to 1 psi; use on cold tires for initial checks)
- Lug wrench and jack(Required to remove wheel for direct TPMS access)
- Direct TPMS sensor (replacement)(Only needed if you confirm a faulty unit on a direct TPMS setup)
- Valve core tool(Used to deflate/inflate and reseat valve cores)
- Torque wrench(Torquing lug nuts to manufacturer spec prevents rotor warping)
- TPMS relearn tool or OBD2 scanner(Needed to register new sensors and complete relearn)
- Replacement valve stem gasket/grommet(Recommended if you see wear or corrosion)
- Safety gloves(Protects hands during wheel service)
- Vehicle service manual(Follow model-specific procedures and torque specs)

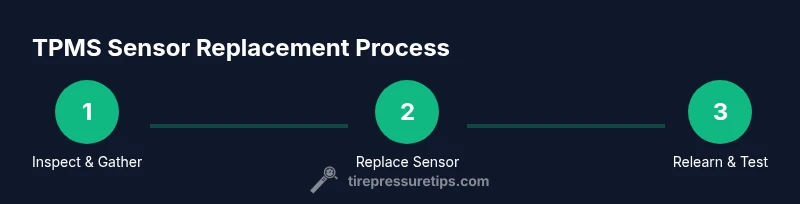

Steps
Estimated time: 45-90 minutes
- 1
Gather tools and locate sensors
Assemble the tools listed above and confirm which wheels have TPMS sensors. Identify whether you have direct or indirect TPMS in your vehicle to tailor the procedure. This upfront check saves time and reduces risk during wheel work.
Tip: Label wheels or note their positions to prevent mix-ups when reassembling. - 2
Read fault codes with a TPMS tool
Connect your scan tool to pull sensor IDs and fault codes. This reveals which sensor is failing and whether the issue is a battery, a sealing problem, or a software relearn requirement.
Tip: If codes aren’t clear, verify codes against a known-good wheel using the same method. - 3
Raise the vehicle and remove the wheel
Loosen lug nuts, raise the car, and remove the wheel. Deflate the tire slightly and remove the valve cap and core if necessary to relieve pressure before sensor access.
Tip: Support the wheel with a jack stand; never rely on the jack alone. - 4
Install replacement sensor and reseal
Install the new sensor, seat it properly, and torque the lug nuts to the recommended specification. Refit the tire and ensure the sensor stem sits straight and sealed against the rim.
Tip: Do not overtighten; over-torquing can damage the sensor or rim. - 5
Relearn, inflate to spec, and verify
Use the relearn procedure suitable for your vehicle (tool-based or built-in sequence). Inflate tires to the OEM cold pressure, then drive 10–20 minutes for the system to recognize the new sensor.
Tip: Take a final pressure check after a short highway drive to confirm stability.
Frequently Asked Questions
What is a wheel pressure sensor?
A wheel pressure sensor is part of the TPMS that monitors tire air pressure and notifies you when it drops below safe levels. Direct TPMS uses physical sensors on each wheel, while indirect TPMS estimates pressure changes via ABS data.
TPMS uses sensors or software to monitor tire pressure and warn you if it’s too low. Direct systems have physical sensors on wheels; indirect systems infer changes from ABS data.
How do TPMS sensors fail?
Sensors can fail due to battery depletion, damaged stems, leaks at the seal, or faulty relearn procedures. Indirect TPMS issues often involve the ABS/vehicle software rather than a physical sensor.
Failures come from battery wear, stem damage, or relearn problems. Indirect TPMS failures are usually software-related in the ABS system.
One sensor failing: replace all or just one?
If only one sensor shows a fault and the others read correctly, you can replace just the faulty unit. If multiple sensors are weak or old, replacing all four ensures uniform performance and simplifies future maintenance.
Usually replace the single faulty sensor, but if several sensors are weak, replacing all four can save time later.
Direct vs indirect TPMS: how do I know which I have?
Direct TPMS uses wheel-mounted sensors with a battery; indirect TPMS relies on ABS data without wheel sensors. Your owner’s manual or a service tech can confirm the system type for your vehicle.
Direct TPMS uses wheel sensors; indirect TPMS uses ABS data. Check your manual or ask a technician to confirm.
Can I reset TPMS without removing the wheels?
Many vehicles allow a TPMS reset via a built-in menu or an OBD2 relearn tool. If your car requires wheel removal for a sensor, you’ll need to follow the direct TPMS procedure.
Yes, some cars reset via onboard menus or an OBD2 tool, others require wheel access for sensor relearn.
What maintenance helps TPMS last longer?
Keep sensors clean, inspect valve stems for damage, and replace aging gaskets. Regularly checking tire pressures when tires are cold helps extend sensor accuracy and life.
Clean and inspect, replace aging seals, and check pressures cold to keep TPMS accurate.
Watch Video
What to Remember
- Verify TPMS status with a scan tool before replacing parts
- Differentiate direct vs indirect TPMS to choose the correct approach
- Use proper torque and seated seals to avoid leaks
- Relearn sensors after replacement to ensure accurate readings
- Regularly check cold tire pressures for safety and efficiency
