Direct Tire Pressure Monitoring System Guide
Learn how a direct tire pressure monitoring system (TPMS) works, how to diagnose faults, reset sensors, and maintain accurate tire pressure with practical steps and safety tips.
According to Tire Pressure Tips, a direct tire pressure monitoring system (TPMS) uses wheel-mounted sensors to measure actual tire pressure and relay real-time psi to the vehicle’s computer. This practical, step-by-step guide helps you test, diagnose, and reset a direct TPMS. You’ll learn how to verify sensor health, recalibrate after tire changes, and know when replacement is necessary using common tools.
What is a Direct Tire Pressure Monitoring System?
A direct tire pressure monitoring system (TPMS) is a safety and maintenance feature that relies individual sensors mounted at each wheel to measure the exact air pressure inside each tire. Unlike indirect TPMS, which estimates pressure from wheel speed and ABS data, a direct TPMS provides per-wheel measurements that feed the vehicle computer in real time. This enables precise warnings when a tire drops below its recommended pressure, reducing the risk of underinflation. For drivers, understanding the direct tire pressure monitoring system means better tire wear, consistent handling, and improved fuel efficiency. The Tire Pressure Tips team emphasizes that reliable direct TPMS data helps you address pressure issues quickly and safely, especially during temperature changes or after tire service. Remember, each sensor has a unique ID linked to your vehicle and may require a relearn procedure after tire rotation or replacement.
wordCount
Tools & Materials
- Digital tire pressure gauge or analog gauge(Essential for accurate baseline pressures)
- TPMS diagnostic scanner or vehicle-specific OBD2 tool(Reads sensor data and fault codes)
- Replacement TPMS sensors (as needed)(Used if a sensor is damaged or its battery is depleted)
- Wheel chocks and wheel jack (for safe access)(Stabilizes the vehicle during work)
- Owner’s manual or service manual for your vehicle(Helpful for relearn procedures and torque specs)

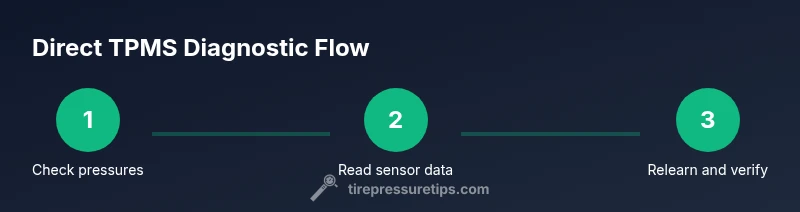

Steps
Estimated time: 45-75 minutes
- 1
Prepare workspace and tools
Park on a level surface, engage the parking brake, and place wheel chocks behind the wheels opposite the one you’ll service. Gather your TPMS scanner, a tire gauge, replacement sensors if needed, and your vehicle manual. This minimizes surprises and keeps the process organized.
Tip: Wear gloves to keep hands clean and protect sensors from accidental damage. - 2
Check baseline tire pressures
Using a reliable tire gauge, record the current pressures for all four tires. Compare each reading to the vehicle’s recommended tire pressure from the placard or manual. Note any tire reading well below the target, as this helps you identify which sensor is likely triggering the warning.
Tip: Check pressures when the tires are cool, typically after the car has been parked for several hours. - 3
Read sensor data with a TPMS tool
Connect your TPMS scanner to read the latest sensor fault codes and individual tire pressures. Look for sensor IDs that match the wheels. Recording sensor IDs helps when you need to relearn or reprogram after service.
Tip: If the scanner shows no data, inspect the sensor’s battery or wiring and confirm the tool is compatible with your vehicle. - 4
Inspect sensors and seals
Physically inspect each sensor at the valve stem for corrosion, damaged seals, or cracked housings. Damaged sensors can leak air or send erroneous readings. Replace any compromised sensor and reinstall with fresh seals if required.
Tip: Handle sensors carefully to avoid damaging the stem or the sensor housing during removal. - 5
Perform relearn or reset procedure
Many vehicles require a relearn process to re-associate sensors with the ECU after service. Follow your owner's manual steps or use the scanner’s relearn function. After relearning, drive the vehicle for a short interval to allow the system to update all wheel readings.
Tip: Some cars require a specific sequence from the ignition or a drive cycle; verify the exact method in your manual. - 6
Verify readings and safety
Re-check tire pressures and confirm the TPMS warning light is off. Confirm that each wheel shows consistent pressure within the recommended range. If any warning persists, re-test or seek professional service.
Tip: Always replace the valve cap after checking to protect the sensor from moisture and debris.
Frequently Asked Questions
What is a direct TPMS and how does it differ from indirect TPMS?
A direct TPMS uses wheel sensors to measure actual tire pressure, sending real-time data to the vehicle computer. Indirect TPMS estimates pressure from wheel speed and ABS signals. Direct TPMS provides precise, per-wheel readings, enabling targeted checks and quicker warnings.
Direct TPMS uses wheel sensors to measure real tire pressure, giving per-wheel accuracy. Indirect TPMS estimates pressure from wheel dynamics. This difference matters for precise alerts and safer driving.
Do I need special tools to reset or relearn TPMS after tire service?
Most vehicles require a TPMS scanner or vehicle-specific tool to relearn sensors after service. Some models also have a manual relearn procedure in the owner's manual. Always follow the exact steps for your car to ensure correct sensor IDs and readings.
A TPMS scanner or the vehicle’s own relearn procedure is usually needed. Check your manual for model-specific steps.
How long do TPMS sensors last and when should they be replaced?
TPMS sensors are designed to last many years, but exposure to road debris, corrosion, and battery degradation can shorten their life. If readings are inconsistent or a sensor fails to respond, replacement is typically required.
Sensors last several years, but damage or battery issues can shorten their life. If readings are unreliable, consider replacement.
Why might the TPMS light stay on even after inflating tires to the correct pressure?
The light may indicate a faulty sensor, a sensor battery issue, or a relearn is needed after service. If the light remains on, run a diagnostic with a TPMS tool and verify sensor IDs.
If the light stays on after inflation, you may have a faulty sensor or need a relearn. Use a TPMS tool to diagnose.
Can I reuse TPMS sensors after rotating tires?
Yes, sensors can typically be reused after rotation, but you should verify readings after the move and perform a relearn if required by your vehicle.
Sensor readings should be checked after rotation and relearn may be needed depending on the model.
Watch Video
What to Remember
- Understand how direct TPMS provides per-wheel pressure data
- Use a TPMS scanner to read fault codes and verify sensor status
- Perform a relearn after sensor/service to ensure accuracy
- Maintain tires at recommended pressures for safety and efficiency
- Replace faulty sensors to prevent nuisance warnings
