This how-to guide helps you diagnose a faulty Toyota RAV4 tire pressure sensor, confirm whether TPMS alerts stem from the sensor or a tire issue, and complete replacement or relearn steps. You’ll learn sensor compatibility, relearn procedures, and how to verify accurate readings with a gauge after service.
Understanding the Toyota RAV4 Tire Pressure Sensor System
The Toyota RAV4 tire pressure sensor system is a cornerstone of modern tire maintenance. Each wheel houses a TPMS sensor that monitors air pressure and transmits data to the vehicle’s control module. The Tire Pressure Tips team notes that sensor health depends on accurate readings, a proper relearn after sensor replacement, and correct wheel knowledge. In most RAV4 generations, the sensors use radio frequency (RF) signals to relay data to the central system, which then alerts the driver if a tire is under- or over-inflated. Battery life varies by model and climate, but a failing sensor often shows symptoms long before a total failure. Understanding these basics helps you identify issues early and avoid unnecessary tire damage or fuel economy penalties.
Common Symptoms of a Faulty TPMS Sensor on the RAV4
If your TPMS warning light illuminates or remains on after inflating tires, the sensor may be failing or out of relearn. Other signs include inconsistent readings between the gauge and the dashboard, frequent false alerts when temperature changes, or a tire that never seems to reach target pressure. On some RAV4 models, the warning light may flicker or stay solid, signaling a sensor in need of service. Regular checks with a reliable gauge help confirm whether the issue is sensor-related or simply an underinflated tire.
Tools, Parts, and Safety Precautions
Tools and materials you’ll need include a digital tire pressure gauge, an air compressor, wheel chocks, a floor jack with jack stands, a lug wrench, OE-compatible TPMS sensor or reputable aftermarket sensor, and a TPMS relearn tool if your year requires it. Safety matters: work on a flat surface, engage the parking brake, and never rely on a jack alone. Disconnecting or isolating the battery near wheel areas is prudent in some setups, and always wear eye protection. This section also covers sensor compatibility notes for common RAV4 generations and guidance on avoiding sensor damage during wheel removal.
How TPMS Works in the RAV4 and Why It Triggers Alerts
TPMS in the RAV4 uses wheel-mounted sensors to monitor air pressure and temperature. The data is transmitted via RF to the vehicle’s TPMS module, which translates it into a dashboard warning. When air pressure deviates from the recommended range, the system triggers alerts. Temperature changes, tire age, and valve stem issues can all provoke warnings. Regular monitoring and maintenance help keep readings accurate and the system reliable. The RAV4 TPMS life depends on sensor integrity, wheel cleanliness, and correct relearn procedures after service.
Replacing a Faulty TPMS Sensor on a Toyota RAV4
Begin by validating which wheel sensor is faulty with a scan tool or TPMS diagnostics app. Safely remove the wheel by loosening lug nuts, then deflate the tire and detach the old sensor. Install the new sensor with correct orientation and torqueing, replacing the valve stem seal if needed. Re-seat the tire, balance the wheel, and reinstall. After mounting, verify that the TPMS IDs are recognized by the vehicle’s control unit and that readings align with a calibrated gauge.
Calibrating and Relearning TPMS After Replacement
Many RAV4s require relearning new sensor IDs after installation. Start with the vehicle in park with the ignition on, and access the TPMS relearn procedure from the owner’s manual or a professional tool. Some generations require a brief highway drive (e.g., 50 mph for several minutes) or a dedicated relearn button sequence. Ensure all four sensors are accurately identified by the system before finalizing. If your model supports an online relearn via dealership tools, consider that option for reliability.
Maintenance Tips to Extend TPMS Life
Keep wheel nuts torqued to spec and avoid pothole-damaged rims. Inspect valve stems for cracks and corrosion, clean wheels to prevent debris buildup, and replace TPMS batteries on schedule if the system allows. After rotating tires or replacing wheels, perform a relearn or sensor-ID check. Use a high-quality tire pressure gauge and cross-check TPMS readings with the actual inflation pressure regularly to maintain accuracy.
Authority Sources
- https://www.nhtsa.gov/road-safety/tyres-tires
- https://www.sae.org/
- https://www.fueleconomy.gov/feg/tirepressure.jsp
Common Maintenance Tips for Tire Pressure
Regularly monitor tire pressure with both a gauge and the TPMS readout, especially during temperature shifts. Keep tires inflated to the vehicle’s recommended PSI, found on the door jamb placard. Periodically inspect the TPMS wheel sensors for corrosion or damage, and schedule sensor checks during routine service intervals. This proactive approach helps maintain fuel economy and tire longevity.
Authority sources (continued)
- https://www.nhtsa.gov/road-safety/tyres-tires
Final Verification Steps
After completing replacement and relearn steps, verify all four wheel sensors report within the expected pressure range and temperature readings. Drive slowly for a few miles to allow the system to stabilize, then recheck with a scan tool or TPMS app. If any reading drifts or the warning persists, re-run the relearn sequence or consult a tire technician.
About this guide for enthusiasts and drivers
Health of the Toyota RAV4 tire pressure sensor is a practical concern for daily driving. This guide emphasizes safety, manufacturer guidelines, and practical tools to ensure reliable TPMS operation.
Quick troubleshooting checklist
- Confirm tire pressures manually with a gauge
- Verify TPMS light behavior after inflation
- Confirm sensor IDs are recognized by the module
- Relearn if required by model year and tool
Final notes on sensor longevity
Maintaining sensor health reduces unexpected tire failures and improves fuel economy, especially for drivers in regions with temperature variation.
Tools & Materials
- Digital tire pressure gauge(Calibrated to read to at least ±0.5 psi; bring to every tire inspection)
- Air compressor or hand pump(Provide stable, accurate inflation; ensure compressor can reach the target PSI on all tires)
- Wheel chocks(Place under the wheels opposite the one being serviced)
- Floor jack and jack stands(Use per vehicle manual; never rely on the jack alone)
- OE-compatible TPMS sensor (or reputable aftermarket)(Ensure compatibility with Toyota RAV4 generation and wheel type)
- TPMS relearn tool (if required by year/model)(Some generations require a relearn tool or dealer procedure)
- Torque wrench for lug nuts(Use the recommended torque from Toyota service data)

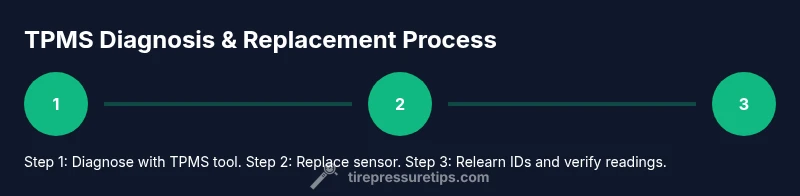

Steps
Estimated time: 45-90 minutes
- 1
Identify the faulty sensor
Use a TPMS scan tool to confirm which wheel sensor is failing. Note the sensor ID and compare to your wheel position. This helps prevent unnecessary wheel removal and ensures you replace the correct unit.
Tip: Double-check the wheel position before removing the tire to avoid mislabeling sensors. - 2
Safely remove the wheel
Loosen lug nuts while the vehicle on the ground, then lift with a floor jack and support with a jack stand. Remove the wheel to access the TPMS sensor at the wheel rim.
Tip: Chock the opposite wheel to keep the car from shifting when you lift. - 3
Remove old sensor and install new one
Deflate the tire fully, detach the valve stem core, and remove the old sensor. Install the new TPMS sensor with the valve stem seated tightly and torque the nut to spec.
Tip: Use a torque wrench to prevent overtightening, which can damage the wheel or sensor. - 4
Reinstall tire and bolt wheel back
Mount the tire back on the wheel, balance if needed, and reinstall onto the vehicle. Tighten lug nuts in a star pattern to spec.
Tip: Check that the wheel sits evenly against the hub before torquing the lug nuts. - 5
Reconnect power and relearn IDs
Reconnect the car battery if you disconnected it, then initiate the TPMS relearn sequence using your vehicle settings or tool. Verify the system recognizes the new sensor IDs.
Tip: Refer to your owner’s manual for model-specific relearn steps. - 6
Verify readings and road test
Inflate tires to recommended pressure, then drive 5–10 minutes to allow TPMS to update. Recheck pressures with a gauge and scan tool to confirm accuracy.
Tip: If readings remain off, repeat the relearn procedure or check for leaks.
Frequently Asked Questions
What is a TPMS sensor, and how does it work in a Toyota RAV4?
A TPMS sensor measures tire pressure and transmits data to the vehicle’s TPMS module. In a RAV4, this helps alert you to under- or overinflated tires. Regular checks and timely replacement maintain safety and fuel efficiency.
TPMS sensors measure air pressure and alert you when readings are off, helping keep your tires safe and efficient.
How can I tell if my TPMS sensor needs replacement?
If the warning light stays on after inflating tires, readings drift from your gauge, or the sensor IDs aren’t recognized by the vehicle after relearn, replacement is likely needed.
If the warning stays on or readings don’t match your tire gauge, you probably need a new sensor.
Can I relearn TPMS without a professional tool?
Some RAV4 generations support a DIY relearn sequence using the vehicle’s menus or a simple button sequence. Others require a relearn tool or dealership procedure.
Some models let you relearn using the car’s buttons, but others need a tool or dealer help.
How long does TPMS sensor replacement take?
Typical replacement takes 45–90 minutes, including sensor installation, wheel reassembly, and relearn steps. Time can vary by model year and whether a sensor wheel needs balancing.
Most replacements take under an hour, plus relearn steps.
Are OEM TPMS sensors better than aftermarket for the RAV4?
OEM sensors guarantee compatibility with Toyota’s system and may offer longer life and better reliability. Aftermarket options can be cost-saving but ensure compatibility and warranty terms.
OEM sensors fit best with Toyota systems, though aftermarket options can work if they’re compatible.
Watch Video
What to Remember
- Know which TPMS sensor is faulty using a diagnostic tool
- Use proper tools and torque specs to avoid damage
- Relearn the sensor IDs after replacement for accurate monitoring
- Verify TPMS readings with both a gauge and scan tool after service
