Tire Pressure Sensor Ford Explorer: TPMS Guide
Master TPMS for the Ford Explorer with practical guidance on tire pressure sensors, calibration, and maintenance to keep tires in the optimal range.
To service a tire pressure sensor on a Ford Explorer, learn how TPMS works, locate sensors in each wheel, and reset the system after maintenance. You'll need a compatible tire pressure gauge, a jack, and possibly a scan tool. Follow the Ford-specific reset sequence to recalibrate the TPMS for proper operation.
What TPMS is and why it matters for the Ford Explorer
The tire pressure sensor Ford Explorer uses the Tire Pressure Monitoring System (TPMS) to monitor pressure in each tire and alert you when it falls outside the recommended range. The system relies on wheel-mounted sensors that broadcast pressure data to a central controller, which then displays warnings on the instrument cluster. According to Tire Pressure Tips, understanding TPMS basics helps you interpret warnings, plan maintenance, and avoid unsafe driving. A healthy TPMS contributes to better fuel economy, longer tire life, and improved handling, especially on long trips or when driving in rain or snow. When a TPMS warning lights up, you should not ignore it. Cold weather, recent tire service, or a slow leak can trigger a false alarm, so verify pressure with a gauge before making a decision. For Ford Explorer owners, knowing which tire is affected, and whether the warning is a low-pressure indicator or a fault in the sensor circuits, makes the next steps much easier.
How TPMS sensors on the Ford Explorer work
TPMS sensors are small battery-powered transmitters mounted on or inside each wheel. As the wheel rotates, sensors periodically send radio signals that encode the current tire pressure and temperature. The vehicle's TPMS control module receives these signals and compares them to the target pressures stored in the system. If the pressure deviates by a predetermined margin, the system triggers a warning light on the dash and, in some cases, a message in the vehicle's info screen. In the Ford Explorer, the system is designed to detect both cold-weather depressurization (which happens when ambient temperature drops) and gradual leaks due to punctures or valve stem wear. The batteries in TPMS sensors typically last many years, but battery failure can cause intermittent warnings or a stale reading. Regular checks of tire pressure with a quality gauge are still essential, since a faulty sensor can mask a real leak. The Tire Pressure Tips analysis notes that inaccurate readings are often caused by sensor corrosion, damaged valve stems, or degraded sensor seals, not just empty tires.
Locating and inspecting TPMS sensors
TPMS sensors live inside each wheel, behind the valve stem or integrated into the wheel assembly. When you rotate tires, or install new sensors, the locations can change slightly. To inspect a sensor, start by visually examining the stem and valve for corrosion, cracks, or looseness. Remove the wheel cover and tire only if you have the proper tools, and use a torque wrench to reattach lug nuts to the spec in your Ford owner's manual. If you have a physical fault or the sensor itself seems damaged, you may need to replace the sensor and seal. Before you begin work, chock the wheels, disconnect the battery if needed for safety, and wear eye protection. If the wheel must be removed, remember that some Ford Explorer trims use sensor IDs stored in the ECU; a relearn may be required after reseating or replacing sensors.
Diagnosing common TPMS faults
Common TPMS faults fall into three buckets: sensor failure, battery depletion, and system calibration issues. Battery drain can cause intermittent readings or a failure to transmit; sensor corrosion or valvestem damage can cause poor contact; the ECU may fail to recognize a sensor after a tire service. Troubleshooting steps include checking actual tire pressure with a gauge, verifying that the tire is properly inflated to the Ford spec, and using a TPMS scan tool to pull fault codes. If you consistently see a warning for the same tire after inflating, the sensor may be the culprit. Additionally, if you replace a tire, you may need to relearn the sensors so the system recognizes the new sensor IDs.
Resetting and relearning TPMS on Ford Explorer
After servicing a tire, replacing a sensor, or rotating tires, you may need to relearn the TPMS to ensure readings match the new configuration. In Ford vehicles, relearning can be performed via the vehicle's menu, a dedicated TPMS relearn button, or through an OBD-II scan tool. Ensure all tires are at the correct cold pressures before starting the relearn procedure. With a scan tool, you can trigger the relearn mode and monitor the system as it recognizes each sensor. The process may require you to drive for a short distance at a steady speed to finalize the calibration.
Practical maintenance to keep TPMS accurate
To keep TPMS accurate year-round, start with consistent tire pressure checks using a reliable gauge, preferably when tires are cold. Maintain equal pressures across all tires, including the spare if your Explorer uses it for TPMS sensing. Inspect valve stems for corrosion, and replace any damaged components promptly. If you notice persistent false warnings after reassuring pressures, have the sensors tested with a compatible scan tool and consider replacing the sensor batteries, which typically wear slowly with time and mileage.
AUTHORITY SOURCES
- https://www.nhtsa.gov/equipment/tire-pressure-monitoring-systems-tpms
- https://www.caranddriver.com/research/a32828043/tire-pressure-monitoring-systems-tpms-explained/
Tools & Materials
- Digital tire pressure gauge(Accurate measurement of cold tire pressure; use before inflating.)
- Tire inflator (compressor or CO2)(Bring each tire to the Ford Explorer's recommended psi.)
- OBD-II scanner with TPMS relearn capability(Needed to read TPMS codes and trigger relearn.)
- Wheel chocks(Block wheels opposite the one being serviced.)
- Lift jack and jack stands(Elevate vehicle safely if you need to inspect sensors.)
- Replacement TPMS sensors(Only if a sensor is physically faulty.)
Steps
Estimated time: 60-120 minutes
- 1
Prepare the workspace and safety checks
Park on a flat surface, engage parking brake, and chock wheels. Gather all tools and ensure you have a safe, uncluttered area to work. If you’ll lift the Explorer, use proper jack points and support with stands. Why: safety and accuracy from the start.
Tip: Double-check the wheel you plan to service to avoid misidentifying the tire with an existing TPMS fault. - 2
Check tire pressures cold
Using a digital gauge, measure each tire when cold and compare to Ford's recommended PSI in the owner’s manual. Correct any underinflation before proceeding to sensor work to avoid false readings during relearn.
Tip: Record the readings for reference during relearn or after tire rotation. - 3
Inspect the TPMS sensors and stems
Visually inspect each sensor for corrosion, loose fittings, or damaged valve stems. If a tire has a damaged stem or corroded sensor, plan for replacement. This step helps determine whether you’ll repair or replace a sensor.
Tip: Avoid twisting the sensor during removal; use a sensor tool or professional-grade tool to prevent thread damage. - 4
Replace or service a faulty sensor
If a sensor is visibly damaged or the battery is dead, replace the sensor and reseal the tire. When reusing sensors, ensure proper torquing and seating as per the wheel manufacturer's specs.
Tip: Always replace valve grommets if you remove the tire; this prevents leaks from rubber wear. - 5

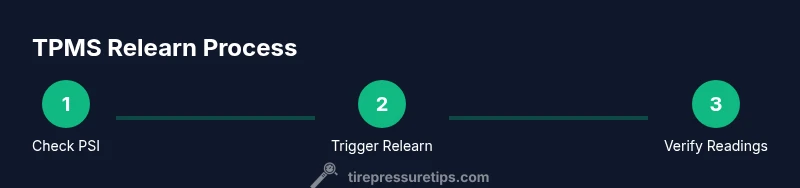

Relearn or calibrate the TPMS
Use an OBD-II tool or the Ford Explorer’s TPMS relearn procedure to recognize the new sensor IDs. Ensure all tires are at target pressures, then initiate relearn and drive briefly to finalize.
Tip: If the system doesn’t complete the relearn, recheck pressure levels and retry once more. - 6
Verify readings and test drive
After relearn, verify that the TPMS warning is cleared and the readings match the gauge. Take a short drive to confirm the system stabilizes and reflects correct pressures.
Tip: If warning persists, scan for fault codes and consider battery replacement in sensors that are older.
Frequently Asked Questions
What does a TPMS warning mean on a Ford Explorer?
A TPMS warning means at least one tire is underinflated, overinflated, or there is a sensor fault. Check all tires with a gauge and address any low pressures promptly. If the warning persists after correcting pressure, inspect or service the TPMS components.
A TPMS warning signals that a tire's pressure is off or there may be a sensor issue; check all tires with a gauge and address the problem.
How do I relearn TPMS on a Ford Explorer?
Relearn TPMS using a supported scan tool or the vehicle’s built-in relearn menu. Ensure all tires are at the correct cold pressures, then follow the prompts to train each sensor ID. A short drive may be required to finalize the process.
Use a TPMS relearn tool or the car’s menu, inflate tires to spec, then drive briefly to finalize.
Can TPMS sensors fail because of temperature changes?
Yes, TPMS readings can be influenced by temperature changes, especially in very cold weather. However persistent warnings usually indicate a sensor fault or a rapid pressure loss that should be inspected promptly.
Temperature can affect readings, but a steady warning often means a sensor problem or leak.
How often should TPMS sensors be replaced?
TPMS sensors can last many years, but wear and corrosion happen with time and driving conditions. If a tire sensor is erratic or a battery fails, replacement is recommended based on diagnostic results.
Sensors last for years, but replace them if readings are unreliable or the battery dies.
Is it safe to drive with a TPMS warning while repairing?
Driving with a TPMS warning is not recommended if the tire may be underinflated. Inflate to the recommended PSI and diagnose the cause of the warning before continuing long trips.
Don't drive long distances with a warning; check pressures and address the root cause.
Watch Video
What to Remember
- Check real PSI with a gauge before trusting TPMS a reading.
- Relearn TPMS after any sensor work or tire rotation.
- Inspect valve stems for corrosion as a common TPMS fault source.
- Use a compatible scan tool to diagnose TPMS codes.
- Keep spare tires and sensors in good condition to prevent false warnings.
