C5 Corvette Tire Pressure Sensors: A Practical How-To
Learn how to check, diagnose, and replace c5 corvette tire pressure sensors (TPMS) with a practical, step-by-step approach for safe driving and optimal performance in 2026.
You're going to identify the C5 Corvette tire pressure sensors, inspect their condition, and perform safe maintenance or TPMS reset steps. Gather a TPMS tool, a reliable tire gauge, and the vehicle's owner's manual to verify sensor specs and procedures.
What the c5 corvette tire pressure sensors do and why they matter
The c5 corvette tire pressure sensors are the heartbeat of your car's TPMS, continuously monitoring each tire's pressure and reporting data to the vehicle's computer. According to Tire Pressure Tips, this system helps drivers prevent underinflation, which can compromise handling, fuel efficiency, and tire life. For a C5 Corvette (1997–2004), TPMS features vary by trim and production year, but the core idea remains: sensors in each wheel measure pressure (and sometimes temperature) and relay signals to the central module. When pressure falls outside the recommended range, a warning lights up on the dash so you can check tires promptly. Understanding where the sensors live, what data they send, and how to interpret warning messages puts you in charge of performance and safety. This guide will walk you through checking, diagnosing, and, if needed, replacing c5 corvette tire pressure sensors with practical, school‑room friendly steps. If you’ve ever wandered why the TPMS light came on during a cold snap, you’re not alone; temperature swings make the sensors work harder, and proper inflation helps maintain tire shape and grip.
Sensor anatomy and how TPMS works on the C5 Corvette
Most TPMS implementations in the C5 generation use a wheel-mounted sensor attached to the valve stem or embedded in the wheel bolting surface. A small battery powers the sensor, and a radio transmitter sends periodic pressure data to the car’s TPMS control unit. The dashboard warning uses the information to decide whether to illuminate the tire warning light or to indicate which tire is low. The sensors are designed to survive road grime, heat, and brake dust, but physical damage, corrosion at the stem, or a loose valve stem core can cause erroneous readings. When you replace or service a wheel, you may need to relearn or calibrate the system so the car recognizes a new sensor ID. In practice, the sensor’s life is tied to its battery and the seal around the valve; if either fails, the readings become unreliable. In all cases, treat the c5 corvette tire pressure sensors as part of a broader maintenance plan protecting your car’s handling and efficiency.
Diagnosing sensor problems without removing tires
Diagnosing issues with c5 corvette tire pressure sensors can often be done without fully dismounting the wheel. Start by verifying the baseline tire pressures with a reliable gauge and compare them to the recommended spec listed on the door jamb or owner's manual. If a single tire reads significantly different pressure than the others, the likely cause is a slow leak or a faulty sensor in that wheel. Use a TPMS diagnostic tool to scan for sensor IDs and to check battery status signals reported by the ECU. If the ECU reports a sensor ID that cannot be read, or if the tool shows a battery fault, you may be dealing with a failed sensor. Before replacing parts, note the exact tire position and record any warning light patterns to help you troubleshoot later. Remember that temperature changes can temporarily affect readings, so test across different conditions when possible.
Replacing a faulty sensor on a C5 Corvette
If the TPMS scan shows a faulty sensor, plan for a wheel removal and sensor replacement. Start by safely lifting the car and securing it with chocks. Deflate the tire to a safe level and remove the wheel from the hub. Disconnect the old TPMS sensor from the valve stem, install the new sensor with the proper valve stem tool, and ensure the bead seal is clean and intact. Reinstall the tire, torque the lug nuts to spec, and inflate to the recommended pressure. Install the TPMS sensor’s mounting hardware as required by your wheel design. Keep a spare sensor ID in your notes to assist the relearn process. After installation, check for leaks around the stem and verify the sensor ID via your TPMS tool before proceeding.
Resetting and relearning TPMS after service
After sensor replacement or wheel work, perform a TPMS relearn. Most modern TPMS tools offer a relearn mode that captures each sensor’s ID and associates it with its wheel position. If your Corvette supports a dealer relearn, you may need to drive the car for a few miles to complete the process. Always confirm the status LEDs or the dashboard indicator shows the system is healthy and no warning lights remain. If the light persists, recheck the seal, relaunch the relearn, and verify each sensor’s data with a diagnostic tool. Regular relearns help your system stay accurate and avoid nuisance warnings.
Maintaining proper tire pressure for performance and safety on the C5
Inflating tires to the manufacturer’s recommended pressure is essential for handling, braking, and tire wear. The C5’s performance characteristics depend on consistent tire pressures across all four wheels, which helps preserve even grip and steering response. Always refer to the door placard for the correct cold-inflation psi or kPa and adjust for load and speed as needed. When you drive in cold weather, pressures drop; check and adjust when tires are cold. A healthy TPMS setup also reduces the risk of sudden deflations during aggressive cornering or braking by keeping pressure within the optimal range. Regular checks with a quality gauge, paired with a functioning TPMS, make for safer driving and better fuel economy.
Seasonal considerations and maintenance tips
Seasonal temperature swings can affect tire pressure and TPMS readings. In winter, pressure can drop noticeably, triggering warnings even if a tire isn’t leaking. Conversely, in hot weather, overinflation can occur if you over‑inflate to compensate. Set a monthly habit of checking all tires when the car is cold and keep a consistent record of readings. If you plan a long road trip, verify pressures the night before and adjust as needed. By maintaining proper inflation, you’ll improve tire wear and fuel efficiency while helping the c5 corvette tire pressure sensors provide accurate data.
Authority sources
- https://www.nhtsa.gov/road-safety/tyres-tires
- https://www.nhtsa.gov/equipment/tires
- https://www.nhtsa.gov/vehicle-safety/tires
Tools & Materials
- Tire pressure gauge(Digital or analog; ensure it reads both psi and kPa and is within 1 psi accuracy)
- TPMS diagnostic/relearn tool(A tool compatible with your C5 Corvette TPMS system; ensure firmware is up to date)
- Replacement TPMS sensors (as needed)(Only if you detect a faulty sensor or a damaged valve stem)
- Valve core tool(To safely remove and install valve cores during sensor work)
- Wheel chocks and jack stands(Always secure the vehicle and use the proper lifting points)

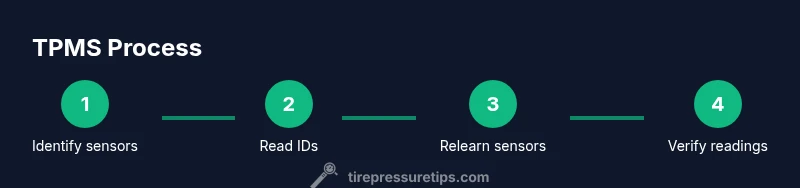

Steps
Estimated time: 60-120 minutes
- 1
Identify sensor locations
Locate each wheel's TPMS sensor (valve stem or wheel‑built) and note the current tire position for reference. This helps you map sensor IDs to wheels during relearn.
Tip: Use a TPMS tool to confirm sensor IDs before disassembly. - 2
Check baseline tire pressures
Measure each tire with a reliable gauge while cold and compare against the vehicle’s recommended cold inflation pressures on the door placard.
Tip: Record numbers for later comparison during the relearn. - 3
Scan sensors and record IDs
Connect the TPMS tool and read each sensor’s ID, battery status, and any error codes. Note which wheel corresponds to each ID.
Tip: If a sensor report is unreadable, check the valve stem seal and battery health. - 4
Decide if sensor replacement is necessary
If a sensor shows battery fault, persistent irregular readings, or physical damage, plan to replace it with the correct model.
Tip: Avoid reusing damaged sensors; damaged seals can cause leaks. - 5
Install new sensor or service wheel
Deflate the tire, remove the wheel, replace the old sensor or stem, reseal the bead, and re-mount. Torque fasteners to spec and re-inflate carefully.
Tip: Keep bead seal clean and inspect the wheel bore for corrosion. - 6
Relearn and verify
Run the TPMS relearn procedure with your tool or the dealer procedure. Verify each sensor is detected and the warning light is off after a short drive.
Tip: Drive 5–10 miles at modest speeds to complete the relearn.
Frequently Asked Questions
How do I know if my c5 corvette tire pressure sensors are failing?
If the TPMS light stays on after inflation to the correct level or if a sensor ID cannot be read by your tool, the sensor or its battery may be failing. Always confirm by scanning all sensors and checking for battery fault codes before replacement.
If the TPMS light remains on after proper inflation or a sensor ID is unreadable, the sensor or its battery is likely failing. Scan all sensors to confirm before replacing.
Can I reset TPMS without a shop tool?
Some vehicles support basic relearn procedures via the ignition sequence, but a dedicated TPMS tool makes the process more reliable and is recommended for accurate sensor mapping.
Some cars allow a manual relearn, but a TPMS tool is recommended for reliable sensor mapping.
Will replacing TPMS sensors affect wheel balance or alignment?
Replacing TPMS sensors on a wheel can affect balance briefly until you re‑balance the wheel after mounting. It does not impact alignment, but misbalancing can affect handling and tire wear.
Sensor replacement can affect wheel balance until you rebalance, but it won’t change alignment.
What is the lifespan of c5 corvette TPMS sensors?
Sensor lifespan varies with battery age, usage, and driving conditions. If readings become inconsistent or the battery fault appears, plan for sensor replacement rather than relying on prolonged reuse.
Sensor life varies; if readings decline or the battery fault shows, replace the sensor.
Do all 1997‑2004 C5 Corvettes support TPMS from the factory?
TPMS availability varied by trim and market. Many later models had TPMS as standard, but some early configurations may require dealer activation or an upgrade.
TPMS availability depended on trim and market; some early cars required activation.
How does temperature affect TPMS readings?
Temperature changes affect tire pressure, which can trigger TPMS warnings. Check pressures when tires are cold and compare with the recommended values to avoid false alerts.
Temp changes can trigger warnings; always verify cold inflation before drawing conclusions.
Watch Video
What to Remember
- Know your TPMS system basics and sensor location.
- Use a dedicated relearn tool for accurate sensor ID mapping.
- Regularly verify tire pressures and sensor data for safety.
- Plan replacement only when sensor faults are confirmed.
