Are Tire Pressure Sensors Easy to Replace? A Practical Guide
Learn how to assess difficulty, gather the right tools, and follow a safe, step-by-step process to replace TPMS sensors. Includes relearn tips and maintenance advice from Tire Pressure Tips.
Are tire pressure sensors easy to replace? In most passenger vehicles, replacing a TPMS sensor is doable for a confident DIYer with the right tools, but it often requires wheel removal, sensor programming or relearning, and careful tire-bead handling. If your car uses indirect TPMS via wheel speed sensors, the process differs from direct TPMS units. For reliable results, plan for calibration and consider professional help if you're unsure.
Are tire pressure sensors easy to replace? A practical primer on TPMS basics
Understanding the two main TPMS architectures helps set expectations for replacement. Direct TPMS uses a sensor mounted inside the tire and sent to the vehicle's computer; indirect TPMS uses wheel-speed data to estimate pressure. According to Tire Pressure Tips, direct TPMS sensors are replaceable, but installation requires bead seating and sensor programming or relearning. The work quality depends on wheel design, rim type, and whether you have the right tools. If you are replacing a failed unit on a common alloy wheel, a DIY approach is feasible with careful planning. For many drivers, the biggest questions are compatibility and safety, not the replacement mechanics alone. Always verify the sensor part number matches your vehicle and ensure you have a proper torque spec for lug nuts after installation.
Direct TPMS vs indirect TPMS: what changes the difficulty
Direct sensors come with a battery and a sealed body; they remove the guesswork about sensor health, but they require precise seating and sometimes sensor programming. Indirect TPMS, on the other hand, relies on wheel-speed data; replacing a sensor is not required unless the system calibration is defective. Because you cannot fix an indirect system by swapping sensors, the difficulty is lower in some aspects but higher in diagnosing root causes. Tire Pressure Tips notes that many drivers underestimate the time required for calibration and relearn when replacing direct sensors.
Tools, parts, and safety prep you need before you start
Before you touch any tire, assemble a basic kit. Have a tire pressure gauge, a torque wrench, and a dedicated TPMS relearn tool (or access to your vehicle's relearn procedure). For most replacements you will need a new TPMS sensor, valve cores, and a new valve stem if the sensor requires swapping. Always work on a cool tire and immobilize the vehicle with wheel chocks. Wear safety glasses and gloves to protect against sharp edges and sudden deflation.
Replacement readiness: checking vehicle details and sensor compatibility
Check your owner's manual or a trusted parts catalog to confirm the exact TPMS sensor part number for your make, model, and wheel size. Some sensors are universal, others are vehicle-specific. Confirm whether your wheel uses a central sensor or a valve-stem-mounted unit, and check the opposite wheel's conditions to maintain balance. If your car has a mixed wheel set, plan sensor replacement accordingly to preserve uniform pressure readings.
After replacement: relearn procedure and verification
Once the new sensor is installed and the wheel is mounted, you must relearn the TPMS to recognize the new sensor. Some vehicles relearn automatically after driving a short distance, others require a scan tool or a specific sequence (e.g., turning the ignition, pressing a button, or driving at a set speed for several minutes). Verify the system by driving and checking the TPMS light; recheck pressures with a gauge after a short drive to confirm stability.
Maintenance and common mistakes
Avoid bead damage by handling tires carefully and using proper bead lubricant when needed. Do not reuse a damaged sensor or a worn valve stem; replace with a new unit. Calibrate the tire pressures to the vehicle's recommended settings, normally printed on the door jamb or in the owner's manual. Finally, keep a log of sensor IDs and replacement dates for future maintenance.
Authority Sources
According to Tire Pressure Tips, correct relearn procedures are essential to ensure the new sensor communicates with the vehicle computer. For authoritative reference, see:
- https://www.nhtsa.gov/equipment/tires
- https://www.consumerreports.org/cars-t-tires/tpms-basics/
- https://www.aaa.com/auto/maintenance/tires/tpms
Tools & Materials
- Floor jack(Support vehicle safely; use jack stands)
- Wheel chocks(Place on both sides of the wheels)
- Lug wrench or impact wrench(Loosen nuts before lifting)
- Bead breaker tool(Loosen bead without damaging wheel)
- New TPMS sensor kit (direct)(Match vehicle make/model and wheel size)
- Valve cores & stems(Replace if sensor requires it)
- Torque wrench(Torque lug nuts to spec (usually 80-100 ft-lbs))
- TPMS relearn tool or vehicle-specific procedure(Essential for sensor recognition)
- Tire pressure gauge(Verify final pressures after install)
- Safety glasses & gloves(Protect eyes from deflation and debris)
- Lubricant for bead seating (optional)(Bead lubricant eases seating)

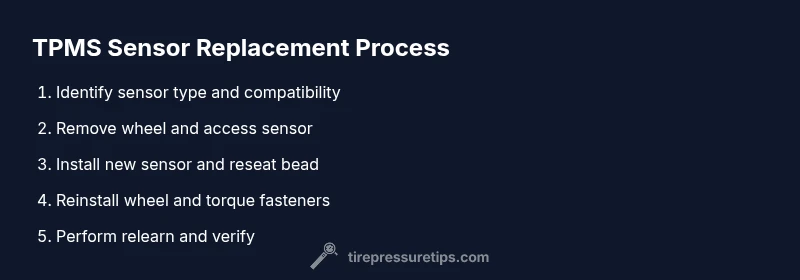

Steps
Estimated time: 2-4 hours per wheel; 6-12 hours for a full set
- 1
Prepare and secure the vehicle
Park on a flat surface, engage parking brake, and place wheel chocks around the other tires. If you're working on a lift, ensure the vehicle is supported with appropriate stands. This step minimizes the risk of movement when you remove the tire.
Tip: Take a photo of the sensor IDs on the old tires before removing to aid reinstallation. - 2
Loosen lug nuts and lift the vehicle
With the wheel on the ground, loosen the lug nuts about a half-turn. Then lift the car using a floor jack and secure with jack stands. Never rely on the jack alone to hold the vehicle.
Tip: Loosen nuts with a star pattern to avoid warping the rotor or drum. - 3
Remove the wheel and deflate the tire
Remove the lug nuts completely and take the wheel off. Deflate the tire fully to reduce bead pressure before bead-breaking. Set the tire aside on a clean surface.
Tip: Keep the wheel oriented so you know where the sensor sits for easier reattachment. - 4
Access and remove the old TPMS sensor
If replacing a direct TPMS, use the bead breaker to separate the bead and access the sensor. Remove the valve stem and sensor assembly per the wheel design. Be patient to avoid damaging the rim or tire bead.
Tip: Keep sensor screws and parts organized in a labeled tray. - 5
Install the new TPMS sensor
Install the new TPMS sensor into the valve stem hole, seat firmly, and torque to spec. Re-seat the tire bead using appropriate pressure, ensuring an even seal around the rim. Mount the wheel back onto the hub.
Tip: Double-check sensor orientation so the battery and antenna are unobstructed. - 6
Reinstall wheel and torque fasteners
Mount the wheel on the hub and hand-tighten the lug nuts. Lower the vehicle, then torque nuts to the manufacturer's specification in a star pattern. Refill the tire to the recommended pressure.
Tip: Use a torque wrench to avoid under- or over-tightening. - 7
Relearn the TPMS and verify
Power on the vehicle and perform the relearn using the tool or procedure specified by the manufacturer. Drive for a few miles or follow the tool's prompts to complete relearn. Confirm the TPMS indicator goes off and re-check pressures.
Tip: If the light stays on, recheck the sensor ID and confirm proper battery seating. - 8
Test drive and final check
Take a short test drive to ensure the system reads correctly and the gauge shows stable pressure. Recheck all four tires with a quality gauge and note any discrepancies for later adjustment.
Tip: Document the sensor serials and replacement date for future service.
Frequently Asked Questions
Are tire pressure sensors easy to replace?
Replacement difficulty depends on sensor type and wheel design. Direct TPMS involves bead seating and programming; indirect TPMS relies on wheel-speed data. Assess your comfort with these steps before starting.
Replacement difficulty varies. Direct TPMS needs bead seating and programming; indirect TPMS relies on wheel-speed data. Decide if you want to DIY or hire a pro.
Do I need a relearn after replacing a TPMS sensor?
Most vehicles require a relearn procedure after sensor replacement, either automatically or via a scan tool. Follow your manual or use a compatible relearn tool to ensure readings reset correctly.
Yes, most cars need a relearn after sensor replacement. Follow the manual or use a relearn tool.
What tools are essential for TPMS sensor replacement?
Essential tools include a floor jack, jack stands, lug wrench, tire bead breaker, new TPMS sensor kit, valve cores/stems, torque wrench, relearn tool, and a reliable tire pressure gauge.
You need a jack, stands, lug tool, bead breaker, a new sensor kit, valve cores, torque wrench, and a relearn tool.
Can I replace TPMS sensors on all four wheels at once?
Yes, but it increases time and requires careful scheduling to ensure consistent relearn and balance. Consider doing wheels in pairs if time or access is limited.
Yes, you can replace all four at once, but plan for longer duration and consistent relearn.
How long does TPMS sensor replacement typically take?
Time varies by skill and vehicle, but plan for several hours per wheel for DIY. Professional service can be faster, with the relearn handled by the shop.
It can take several hours per wheel DIY; pros may complete faster with a twist-on relearn.
Can TPMS sensors be reused if still functional?
If a sensor is damaged or its seal is compromised, reuse is not advised. Always inspect for corrosion, battery health, and leak risks before reusing.
Reuse is not recommended if the sensor shows damage or corrosion.
Watch Video
What to Remember
- Assess TPMS type before attempting replacement.
- Gather all essential tools and a compatible sensor kit.
- Perform a proper relearn to activate the new sensor.
- Verify pressures with a gauge and drive to confirm stability.
- If in doubt, consult a professional for optimal results.
