Programmable Tire Pressure Sensor: Setup, Calibration, and Use
Learn how a programmable tire pressure sensor works, how to install, calibrate, and maintain it for accurate TPMS data and safer driving.
A programmable tire pressure sensor lets you customize target pressures and trigger alerts when readings deviate. It feeds data to your TPMS and compatible apps, enabling automatic adjustments or reminders. This guide shows what you’ll need, how to install and calibrate, and how to validate readings for dependable tire pressure management.
How a programmable tire pressure sensor works
A programmable tire pressure sensor (PTPS) is more than a simple pressure switch. It integrates sensors, a microprocessor, and a communication radio to monitor pressure in real time and report data to your vehicle’s TPMS or a smartphone app. The key advantage is configurability: you can tailor target pressures, hysteresis, and alert thresholds to your driving style and climate. According to Tire Pressure Tips, the best PTPS solutions offer robust accuracy across a wide range of temperatures and road conditions. The sensor’s electronics measure pressure and temperature, and the firmware applies compensation algorithms to deliver stable readings even as tires heat up or cool down. When you replace or install a programmable sensor, you’re not just swapping hardware—you’re updating the way your vehicle senses and responds to pressure changes. This creates a foundation for safer drives, better fuel efficiency, and more predictable tire wear.
Key features to look for in a programmable tire pressure sensor
Look for accuracy, temperature compensation, low power consumption, and reliable wireless communication. A good PTPS should report pressure in psi or kPa with minimal drift, support auto-calibration after installation, and offer a clear way to update calibration thresholds. You’ll also want firmware that can be upgraded over the air or via a service tool, and compatibility with your TPMS protocol. If your vehicle uses a direct TPMS, confirm that the PTPS can integrate with the car’s CAN bus or OEM head unit. Finally, consider battery life and a conservative duty cycle; sensors that stay powered during long road trips but sleep restfully between inflations extend service life. Tire Pressure Tips analysis indicates that dependable sensors maintain accuracy in both hot sun and freezing rain, reducing false alarms.
Installation prerequisites and choosing a kit
Before buying, verify your tire size, rim type, and wheel volume to ensure sensor compatibility. Gather a PTPS kit that includes the sensor, a mounting tool, a programming interface, and an installation guide. If you’re unsure, consult your vehicle’s service manual or a qualified technician. Many kits support multiple sensor formats (0-ohm vs 45-ohm, etc.), and some offer universal adapters for different makes. Expect to work with aluminum or steel wheels and to handle tires while they’re off the vehicle. Put the wheel back on temporarily after mounting to check for clearance and bead seating. A clean workspace and protective gloves reduce the chance of damaging the sensor or tire bead. Finally, confirm that your vehicle’s ECU recognizes the new sensor after installation.
Step-by-step calibration and setup
The following sections outline the exact actions to bring a programmable tire pressure sensor online. You’ll perform safety checks, install or replace the sensor, connect to the programming tool, and finalize calibration. Each action focuses on a single task to minimize error. Begin by reviewing the kit’s manual, ensuring you have a clear path for data entry and thresholds. If you encounter a mismatch between the sensor and your vehicle’s TPMS protocol, consult the compatibility chart or contact the manufacturer for guidance. The goal is a stable baseline that can be verified with a subsequent road test. Remember to document each setting and save your calibration profile so you can revert if needed.
Configuring thresholds and alerts
Configure the PTPS to reflect your vehicle’s target pressures and the operating climate. Set alerts for under-inflation and over-inflation, and choose how you want to be notified (vehicle dash, mobile app, or both). If your tires operate differently by axle, consider separate targets for front and rear tires. Use a consistent reference pressure (usually the cold-inflation spec from the manufacturer) and apply the same units across all channels. After applying thresholds, run a quick check with the gauge to confirm readings align with the setpoints. Fine-tuning may be required during the first drive cycle, especially in seasonal temperature extremes.
Calibration validation and road testing
Validation is a two-step process: verify readings at a known cold baseline with a calibrated gauge, then confirm stability on a short road test. During the road test, monitor how quickly readings respond to inflations or deflations and check for any lag or drift. If the sensor indicates pressure outside expected ranges, recheck installation seals and ensure the tire bead is seated correctly. Keep logs of readings and any adjustments you make. This documentation helps with future maintenance and when comparing different sensor models.
Real-world use cases and benefits
A programmable tire pressure sensor provides consistent readouts across temperature shifts, load variations, and vehicle speeds. For fleet operators, it enables centralized monitoring and automatic alerting, reducing downtime and ensuring tires remain within safe pressure ranges. For everyday drivers, it reduces the risk of hidden pressure losses in cold mornings and during long trips. The ability to customize thresholds means you can tailor alerts for performance tires, winter setups, or vehicles with heavy payloads. In practical terms, you’ll notice easier maintenance planning, improved fuel efficiency, and longer tire life when readings are dependable.
Troubleshooting common issues
If readings appear unstable, check for sensor orientation, battery status, and seal integrity around the valve stem. A poor seal can cause slow leak readings and false alerts; reseat the sensor and recheck. Incompatibility with TPMS protocols can produce communication errors—consult the kit documentation to verify compatibility. Firmware mismatches can also cause drift or missed alerts; ensure the sensor firmware is current (where possible) and that the device has a valid calibration profile. Finally, if the readings deviate after a temperature swing, re-run the calibration to compensate for ambient changes.
Maintenance and safety considerations
Regular maintenance includes periodic verification of sensor integrity, battery health (if applicable), and firmware updates. Always perform tire work with the tires cool and on a stable surface. Never overtighten or forcibly remove parts; use the recommended torque specs and tools. Keep calibration data organized and back up profiles in the cloud if the kit supports it. Practical long-term care reduces false alarms and extends sensor life.
Data privacy and integration with apps
Many PTPS solutions offer cloud syncing and mobile app dashboards. Review privacy policies to understand what data is collected and how it’s used. If you share data with third-party apps, ensure you’ve opted in to data sharing and check your device permissions. Integrations with vehicle apps can simplify monitoring, but be mindful of security and ensure you keep software up to date to mitigate potential vulnerabilities.
Tools & Materials
- Programmable tire pressure sensor kit(Ensure sensor compatibility with your vehicle make/model)
- TPMS programming tool or service interface(For configuring thresholds and writing calibration data)
- Digital tire pressure gauge(Use to establish a cold baseline before calibration)
- Wheel removal tools and torque wrench(Needed for some installation methods; follow torque specs)
- Vehicle service manual or official app(Reference for correct target pressures and procedures)

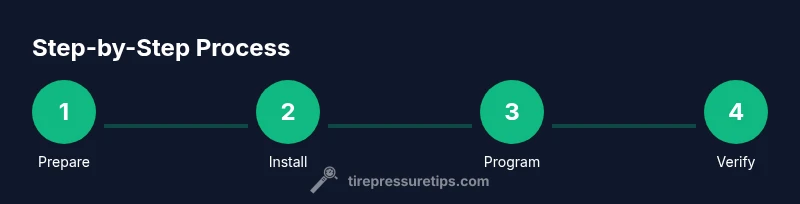

Steps
Estimated time: 30-90 minutes
- 1
Prepare workspace and safety checks
Park on a flat surface, engage the parking brake, and wear safety gloves. Inspect the tools to prevent damage to the sensor or wheel. Ensure tires are cool before handling to avoid inaccurate readings.
Tip: Keep a digital notebook with the baseline pressures for your vehicle. - 2
Identify sensor compatibility
Cross-check tire size, rim type, and your vehicle’s TPMS protocol. Confirm that the PTPS model supports the expected communication standard. If in doubt, contact the manufacturer for compatibility confirmation.
Tip: Check the vehicle compatibility chart before purchase. - 3
Install or replace the PTPS
Remove the tire or access the valve stem according to the kit instructions. Install the sensor so it seats correctly with a proper seal. Reinstall the wheel and secure with the manufacturer’s torque spec.
Tip: Take photos of the installation for reference. - 4
Connect to programming tool and begin setup
Connect the PTPS to the programming tool and read the baseline data. Enter initial vehicle data and confirm sensor identity. Save the profile to the device and vehicle interface.
Tip: Verify that the tool reports a stable connection. - 5
Set target pressures and alert thresholds
Enter the cold-inflation targets from the vehicle spec sheet or your chosen guidelines. Configure alert thresholds for under- and over-inflation and choose notification methods.
Tip: Use a single unit system (psi or kPa) across all tires. - 6
Validate readings and perform road test
Record a cold baseline with a calibrated gauge, then drive a short loop to confirm readings respond correctly to inflations/deflations. If any drift appears, re-check seals and re-run calibration.
Tip: Document results and keep a calibration log.
Frequently Asked Questions
What is a programmable tire pressure sensor?
A programmable tire pressure sensor provides configurable pressure targets and alert thresholds, feeding data to the TPMS or apps. It allows customization for different tires and driving conditions and can improve accuracy and reliability over fixed-sensor setups.
A programmable tire pressure sensor lets you set custom pressure targets and alerts, making TPMS readings more reliable across conditions.
Do I need special tools to install?
Yes. Most installations require a programming interface and the sensor kit. Some steps may be doable with basic hand tools, but follow the manufacturer’s guide to avoid damaging the sensor or wheel.
You’ll typically need a programming interface and the sensor kit; follow the guide for proper installation.
Can I program thresholds myself?
Yes, many PTPS kits include software to set target pressures and alert thresholds. Always use official vehicle specs for accuracy and safety.
Yes, you can program thresholds with the provided software, using your vehicle’s official specs.
How often should I calibrate PTPS?
Calibrate after installation, after tire service, or when changing tire sizes. Recheck thresholds periodically and after any performance changes to the vehicle.
Calibrate after install, after service, or when tires change, then recheck as needed.
Is PTPS compatible with all vehicles?
Compatibility depends on the sensor protocol and the vehicle’s TPMS system. Review the manual or compatibility charts before purchase.
Compatibility varies; check the vehicle’s TPMS protocol and the sensor’s compatibility chart.
What safety considerations should I know?
Work on tires when cool, keep wheels secured, and follow torque specs. Avoid overtightening and ensure all seals are intact to prevent leaks.
Work with cool tires, secure wheels, and follow torque specs to stay safe.
Watch Video
What to Remember
- Set precise targets using manufacturer specs or credible guidelines.
- Verify sensor-vehicle compatibility before purchase.
- Calibrate and validate with a known gauge, then road-test.
- Document settings and keep a maintenance log.
- Regularly check TPMS readings after service or tire changes.
