How to Install Tire Pressure Sensor (TPMS): Step-by-Step Guide
A practical, thorough guide to install a tire pressure sensor (TPMS). Learn sensor types, tools, safe prep, step-by-step installation, calibration, testing, maintenance, and troubleshooting for reliable TPMS performance.
By following this step-by-step guide, you will install a TPMS tire pressure sensor and recalibrate the system on most passenger cars. You'll need the correct sensor, a TPMS reset tool, a torque wrench, and a floor jack for safety. According to Tire Pressure Tips, using the right sensor and proper torque minimizes leaks and ensures accurate readings.
Understanding TPMS sensors and how they work
Tire Pressure Monitoring Systems (TPMS) help you avoid under-inflated tires by monitoring air pressure and alerting you when readings drop. There are two main approaches: direct TPMS, which uses wheel-mounted sensors that transmit pressure data, and indirect TPMS, which uses ABS/ESP wheel-speed data to infer pressure changes. Direct sensors provide real-time, precise measurements and are generally more reliable, but require physical replacement when they fail. According to Tire Pressure Tips, the choice between direct and indirect systems influences sensor compatibility and the relearn procedure, so verify which type your vehicle uses before ordering parts.
Direct vs indirect TPMS: choosing the right path for your vehicle
Direct TPMS sensors mount inside the wheel and measure actual air pressure. They transmit readings to the vehicle’s TPMS controller, enabling precise alerts and easier diagnostics if a tire leaks. Indirect TPMS, still used on some older vehicles, estimates pressure using wheel-speed data and ABS signals. When replacing sensors, aim for direct TPMS if your car supports it, as it offers the most reliable readings and faster relearn. Always verify compatibility with your make, model, and wheel configuration before purchasing, and check whether your vehicle requires a relearn procedure after installation.
Tools, parts, and sensor compatibility you need to know
Before you start, assemble the essential tools and confirm the sensor type. For direct TPMS, you’ll need a compatible sensor that matches your wheel configuration, a torque wrench, a valve core tool, and a relearn or reset tool compatible with your vehicle. Add a tire bead seating lubricant, so the tire bead seats evenly when you reinstall the tire. Have a reliable air supply or inflator on hand to bring the tire back to its recommended pressure. For aftermarket sensors, ensure warranty coverage and compatibility with your vehicle’s ECU.
Safety first: handling tires and wheels for a TPMS install
Safety comes first with any tire work. Park on a flat surface, apply the parking brake, and chock the wheels. Use a proper jack stand and never rely on a jack alone. Wear eye protection and gloves. Be mindful of hot tires after road tests and avoid over-inflation or under-inflation that could cause a breakage during seating. If you encounter a damaged wheel, do not install a new sensor on that wheel until you repair or replace the wheel.
Pre-installation inspection and wheel preparation
Inspect the wheel and brake area for corrosion or damage around the valve stem. If you’re replacing the sensor on a mounted wheel, remove the tire using a proper tire changer, deflate the tire completely, and carefully remove the valve core. If the bead seats unevenly on your wheel, apply bead seating lubricant to help seal. Clean the valve stem hole and threads to ensure a secure seal for the new sensor. Double-check that you have the correct torque specs for the sensor and wheel.
Step-by-step overview: what you’ll do and why (high level)

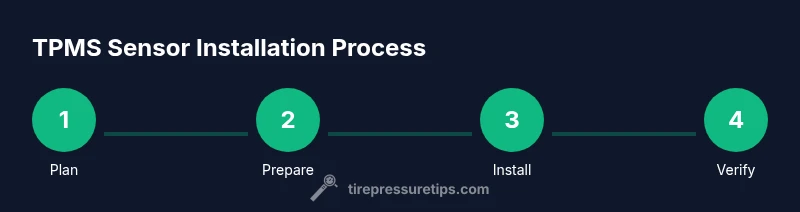

Installing a TPMS sensor involves four core phases: selecting and aligning the sensor, removing the old valve stem or sensor, installing the new sensor with correct torque, and relearning the system so the vehicle recognizes the new sensor IDs. Understanding the sequence helps you avoid leaks, sensor misreads, or failed relearns. The goal is a secure seal, correct torque, and a successful sensor registration with the vehicle computer.
Calibration and relearning: syncing your new sensor with the vehicle
Direct TPMS sensors require relearning, so the vehicle recognizes the new sensor’s ID. The exact procedure varies by make and model, but common steps include turning ignition to ON, using a relearn tool or the vehicle’s onboard menu, and driving for a short distance to complete the process. If your car uses an OBD relearn, connect the tool and follow the prompts. Avoid driving long distances before the relearn completes, as readings may be inaccurate.
Testing and verification after installation
After the relearn completes, check the dashboard light behavior and confirm each tire shows a valid pressure reading on the TPMS screen. Use a handheld tire pressure gauge to verify actual pressure against the sensor reading. Perform a short drive of 5-15 miles to allow the system to stabilize and recheck readings. If any sensor lacks data, recheck seating or consider re-installing.
Maintenance tips to extend TPMS life and reliability
Keep sensors clean and free of corrosion by inspecting valve stems during tire rotations. Replace batteries in direct sensors once the vehicle’s service interval indicates battery health or per sensor warranty. Avoid exposing sensors to harsh temperature swings without proper tire inflation. Document sensor IDs and keep track of replacement dates to simplify future relearns.
Troubleshooting common TPMS installation issues
If the TPMS light remains on after installation and relearn, check that the sensor IDs matched the vehicle’s ECU, confirm tire pressures are within recommended range, and ensure the wheel is not leaking air. If you hear air escaping near the valve stem, reseat the tire and ensure the stem is properly installed. Persistent failures may indicate a faulty sensor or a non-compatible unit.
Tools & Materials
- Direct TPMS sensor kit (OEM or aftermarket compatible with your vehicle)(Confirm sensor type and compatibility with your make/model.)
- TPMS sensor installation tool (nut driver or hex adapter)(For securing sensor and removing old hardware.)
- Torque wrench(Torque to vehicle spec to avoid leaks.)
- Valve core tool(Used to remove/seat the valve core.)
- Bead seating lubricant (soap/water can be used)(Helps the tire bead seal during seating.)
- Air compressor or inflator with gauge(To bring tire to correct pressure and seat beads.)
- Tire pressure gauge (external)(Verify pressure after seating and relearn.)
- Relearn tool or vehicle-specific procedure(Used to complete TPMS relearn.)
- Safety gear (gloves, eye protection)(Protect during tire removal and sensor work.)
Steps
Estimated time: 60-120 minutes
- 1
Prepare and verify compatibility
Review your vehicle’s TPMS requirements, identify sensor type, and gather tools. Confirm model/year to avoid ordering the wrong sensor.
Tip: Double-check sensor compatibility with your exact vehicle trim. - 2
Safely lift the vehicle and remove the tire
Park on a flat surface, engage the parking brake, and chock opposite wheels. Lift with a proper jack and secure with stands before removing the wheel.
Tip: Never rely on a jack alone; use stands for stability. - 3
Deflate tire and remove the valve core
Deflate completely and remove the valve core to enable easier sensor access. Keep the core in a safe location for reuse or replacement.
Tip: Lubricate the valve stem if difficult to remove the core. - 4
Remove the old sensor and prepare seating surface
If replacing a direct TPMS sensor, detach it from the valve stem and clean the seating area. Inspect the wheel for damage or corrosion.
Tip: Inspect threads and seal surface for debris before installing the new sensor. - 5
Install new TPMS sensor and secure
Thread the new sensor by hand first, then tighten to spec with the torque wrench. Avoid overtightening to prevent seal damage.
Tip: Ensure the sensor sits flush and oriented correctly to align with the valve hole. - 6
Re-seat bead and reinstall tire
Seat the bead evenly around the rim to ensure a proper seal. Reinstall the tire onto the wheel and check for any bead seating issues.
Tip: Apply bead seating lubricant if you encounter resistance during seating. - 7
Inflate to correct pressure and check for leaks
Inflate to the vehicle’s recommended cold pressure. Use soapy water to verify no air is escaping from the bead or valve.
Tip: Recheck pressure after initial drive, as heat may change readings. - 8
Perform relearn/calibration
Follow your vehicle’s OEM relearnProcedure or use an appropriate tool to register the new sensor IDs with the ECU. This often requires a short drive or a diagnostic session.
Tip: Have the owner's manual on hand for model-specific steps. - 9
Test drive and verify readings
Drive 5–15 miles to stabilize readings and confirm each tire shows valid pressure on the TPMS display.
Tip: If any sensor isn’t recognized, recheck seating and try the relearn again.
Frequently Asked Questions
Can I install TPMS sensors myself, or should I go to a shop?
Yes, you can install TPMS sensors yourself if you have the right tools and follow the vehicle-specific relearn procedure. Some models may require special equipment for calibration, so consult your vehicle manual or Tire Pressure Tips’s guidance before starting.
Yes, you can install TPMS sensors yourself if you have the right tools and follow the relearn procedure. For certain models, professional calibration may be recommended.
What is the difference between direct and indirect TPMS?
Direct TPMS uses wheel-mounted sensors that measure actual pressure and transmit data. Indirect TPMS uses ABS or wheel-speed signals to infer pressure changes without a physical sensor in the tire. Direct sensors are typically more reliable and easier to diagnose.
Direct sensors measure air pressure directly, while indirect TPMS infers pressure from wheel speed. Direct is usually more reliable for diagnosis and maintenance.
Do I need a relearn after sensor replacement?
Most direct TPMS installations require a relearn so the ECU recognizes the new sensor IDs. The exact steps depend on your make and model; use the OEM procedure or a relearn tool to complete the process.
Yes, after installing a new TPMS sensor you usually need to relearn the system so the car recognizes the sensor IDs.
How long does the relearn take?
Relearn usually takes just a few minutes in the vehicle workflow, plus additional time to drive the vehicle and stabilize readings as required by the OEM procedure.
Relearn typically takes a few minutes plus a short drive to stabilize readings.
What tools do I need for installation?
You’ll need a compatible TPMS sensor, a torque wrench, a valve core tool, a relearn tool or OEM procedure, an air compressor, tire gauge, and safety gear. Having a proper tire changer helps, but many steps can be done with a shop-grade portable setup.
A sensor, torque wrench, valve core tool, relearn method, air supply, gauge, and safety gear are typically required.
Can I reuse old sensors after removal?
Reuse is possible if the sensor is in good condition, the battery is healthy, and compatibility is confirmed. Most technicians prefer replacing aging sensors to avoid unexpected failures.
You can reuse an old sensor if it’s healthy and compatible, but many prefer replacing aging sensors to reduce risk.
Watch Video
What to Remember
- Identify your TPMS type before ordering parts
- Use the correct sensor and torque to prevent leaks
- Perform sensor relearn after installation
- Verify readings with a gauge and test drive
