How to Clean Air Pressure Regulator: A Step-by-Step Guide
A complete, safety-focused guide on how to clean an air pressure regulator for accurate tire inflation and reliable performance. Includes tools, steps, tips, FAQs, and maintenance.
To clean an air pressure regulator safely, depressurize the system, remove the regulator from your hose or tool, and disassemble only as needed. Rinse metal parts with isopropyl alcohol or mild soap and water, dry thoroughly, inspect O-rings, and reassemble. Regular cleaning helps maintain accurate tire inflation and extends regulator life.
Why clean an air pressure regulator matters
Regular cleaning of an air pressure regulator helps maintain accurate readings, prevents sticking or sluggish response, and reduces the risk of contaminants entering your tire inflation system. Over time, dust, oil residues, and moisture can accumulate inside the regulator, leading to erratic pressure output or false readings when you’re filling tires. For drivers and tire enthusiasts, keeping the regulator clean translates to safer inflation, better tire wear, and improved compressor efficiency. The Tire Pressure Tips team notes that routine maintenance can extend equipment life and improve measurement reliability during everyday check-ups and seasonal tire changes. In this section we’ll cover what can accumulate inside and why it matters for your inflation routine.
Signs your regulator needs cleaning
If you notice inconsistent air pressure, fluctuating gauge readings, or a slower response when you adjust setpoints, it’s time to clean. Moisture droplets or oil traces around the regulator housing can indicate internal buildup. A regulator that hums or leaks slightly around seals or fittings may also benefit from cleaning. If your system has a dedicated air filter, ensure the regulator is not blocked by debris; combined maintenance of filter, regulator, and hose improves overall performance. Regular inspection and cleaning help prevent long-term wear and preserve accuracy for routine tire checks and seasonal mounts.
Understanding the regulator’s components
A typical air pressure regulator consists of an inlet, a diaphragm or valve assembly, a spring, O-rings, and a cap or cover. Contaminants can lodge between the diaphragm and seat, causing poor seal or leaks. Some regulators have removable covers that allow access to the diaphragm and screens. Knowing these parts helps you decide how far you need to disassemble and which components to clean or replace. When in doubt, start with non-destructive cleaning and escalate only if readings remain inconsistent. These components are designed for service, not permanent disposal, which makes cleaning a practical maintenance task.
Safety first: prep and containment
Before you touch any regulator, ensure the system is completely depressurized and disconnected from power or the compressor. Work in a clean, well-lit area, and use gloves to protect hands from sharp edges and solvents. Have a small tray or container to organize screws, springs, and O-rings to avoid losing tiny parts. Use eye protection to shield against accidental splashes if you’re using liquid cleaners. Keeping solvents away from open flames and ensuring good ventilation reduces risk during cleaning.
Cleaning without full disassembly: non-destructive approach
For regulators showing minor buildup, a non-destructive cleaning approach often suffices. Detach the regulator from the line, remove the inlet screen if present, and flush with a mild soapy solution or isopropyl alcohol. Use compressed air to blow out passages, holding the can upright to avoid propellant deposit. Wipe surfaces with a lint-free cloth, focusing on the diaphragm housing and valve seats. This method minimizes risk to the internal components while restoring smoother operation and more accurate readings for casual tire maintenance.
When and how to disassemble for a deeper clean
If readings remain erratic after non-destructive cleaning, you may need to access the diaphragm and seal components. Carefully remove the screws or retaining ring, lift the cap, and inspect the diaphragm for cracks or oil staining. Clean the seats and internal surfaces with alcohol, avoiding harsh solvents that could degrade rubber parts. Inspect O-rings for wear or deformation and replace as needed. After reassembly, perform a leak-test and calibrate if your regulator supports it. Deep cleaning is more invasive but can restore function when buildup is substantial.
Reassembly, calibration, and functional test
Reassemble the regulator in the reverse order of disassembly, ensuring O-rings seat evenly and caps are tightened to the manufacturer’s torque recommendation. Reconnect to the hose or tool, and re-pressurize gradually. Test by setting a known pressure on the gauge and verifying it holds steady under light load. Check for leaks around fittings with soapy water; bubbles indicate a seal issue that requires attention. A successful test confirms the regulator is clean and functioning, delivering stable pressure for precise tire inflation.
Maintenance habits to extend regulator life
Schedule regular cleanings as part of your tire-care routine, especially after periods of heavy use or exposure to moisture. Store components in a dry place and inspect seals every few months. Keep a small maintenance kit on hand with replacement O-rings and a soft brush to remove stubborn debris. Document the service date and any parts replaced so future cleanings build on previous work. Consistent maintenance helps sustain accuracy and reliability across seasons.
Tools & Materials
- Safety gear (gloves, safety glasses)(Protect hands from solvents and sharp edges)
- Isopropyl alcohol (70% or higher)(Preferred for quick evaporation and residue-free cleaning)
- Mild soap and water(Alternative for initial flush; ensure no suds remain)
- Lint-free cloths(For wipe-downs and drying surfaces)
- Compressed air can(Bleed out and dry passages; use with caution)
- Small screwdriver or hex driver(If your regulator uses screws to access internals)
- Replacement O-rings(Keep on hand for wear and tear)
- Container or tray(Keep screws and small parts organized)

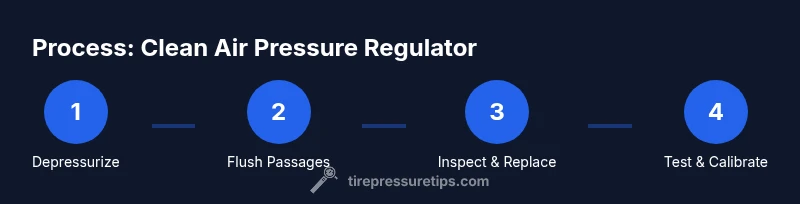

Steps
Estimated time: 30-45 minutes
- 1
Power down and depressurize
Ensure the entire system is off and completely depressurized before touching the regulator. This prevents accidental release of stored air and reduces the risk of injury. Wait for any residual pressure to dissipate, typically a few seconds to a minute depending on the system.
Tip: Always disconnect the power source and bleed the line slowly to avoid a sudden pressure spike. - 2
Disconnect regulator from line
Carefully detach the regulator from the hose or tool you’re servicing. Place all hardware in a tray to prevent loss of small parts. Confirm there is no residual pressure in the hoses after removal.
Tip: Take a photo of how parts connect before disassembly to simplify reassembly. - 3
Remove the cap and inspect outer parts
Loosen screws or a retaining cap to access the exterior. Check for visible wear or cracks on the casing, and inspect the inlet screen if present. Cleaning starts here with a wipe-down to remove surface grime.
Tip: Do not force any part if you feel resistance; double-check fasteners first. - 4
Flush the regulator with solvent
Rinse internal passages with isopropyl alcohol or mild soap and water. Use a gentle rinse to avoid dislodging delicate components. Dry with a lint-free cloth after rinsing.
Tip: Avoid soaking rubber diaphragms in harsh solvents that can degrade them. - 5
Clean diaphragms and seats
If you access the diaphragm, inspect for cracks and clean the seating surfaces. Remove any stubborn residue with a soft brush or cloth. Ensure surfaces are dry before reassembly.
Tip: If diaphragms show wear, replace rather than reusing to prevent leaks. - 6
Inspect and replace O-rings
Check O-rings for deformation, cracking, or hardening. Replace with the correct size to restore a good seal. Lubricate lightly with compatible lubricant if recommended by manufacturer.
Tip: Always use manufacturer-approved O-rings to avoid compatibility issues. - 7
Reassemble the regulator
Rejoin housing components in the reverse order. Tighten fasteners to the recommended torque and verify seal integrity before testing.
Tip: Hand-tighten first, then snug with a tool to avoid over-tightening. - 8
Test and calibrate
Reconnect to the line, slowly re-pressurize, and test the outlet pressure with a gauge. Check for leaks using a soapy solution around fittings. If leaks appear, reseat components or replace seals.
Tip: Run a few short test cycles to ensure consistent performance before regular use.
Frequently Asked Questions
Can I clean a regulator without disassembling it?
Yes, for light buildup you can flush the exterior and accessible passages with alcohol and compressed air. This non-destructive method often restores function without opening the housing.
You can clean without full disassembly if the regulator only shows minor buildup; start with exterior cleaning and flushing the passages.
What solvents are safe for regulators?
Isopropyl alcohol is commonly safe for most regulators and quick-drying. Avoid harsh solvents that can degrade rubber diaphragms and seals.
Isopropyl alcohol is usually safe for regulators; avoid strong solvents that can damage seals.
How often should I clean an air pressure regulator?
Frequency depends on use and environment. Inspect monthly and perform a thorough cleaning every 6–12 months, or more often if you notice readings drift.
Check it monthly and clean thoroughly every 6 to 12 months, or sooner if you see drift.
When should I replace the regulator instead of cleaning?
If the regulator leaks after replacing O-rings or shows persistent accuracy issues after cleaning, replacement is usually wiser than repeated repairs.
If leaks persist after cleaning and O-rings replacement, replace the regulator.
Will cleaning affect calibration?
Cleaning itself doesn’t recalibrate the device; after cleaning, test and re-check accuracy. Calibrate or adjust if your model supports it.
Cleaning may affect calibration; always test afterward and recalibrate if applicable.
Is it safe to use compressed air for drying?
Yes, but use short bursts from a safe distance and hold the nozzle away from delicate parts to avoid damage.
Use short bursts of air at a safe distance to dry; be gentle with the internals.
Watch Video
What to Remember
- Clean regulators extend life and accuracy.
- Depressurize before handling and use non-destructive cleaning first.
- Inspect diaphragms and O-rings; replace worn parts promptly.
- Test for leaks and verify accuracy after reassembly.
- Maintain a regular cleaning schedule for best results.
