Mechanical Tire Pressure Gauge: Step-by-Step Guide
Learn how to use a mechanical tire pressure gauge to measure cold tire pressure, calibrate for accuracy, and maintain reliable readings. This educator-friendly guide covers steps, maintenance, and common mistakes for safer, efficient driving.
In this guide, you will learn how to measure tire pressure with a mechanical tire pressure gauge, including preparation, step-by-step instructions, and maintenance tips to keep readings accurate. Expect practical advice, safety notes, and maintenance checklists. We also compare common mistakes with digital gauges and explain when to replace worn parts. You’ll finish with a reliable, repeatable process you can trust.
What a mechanical tire pressure gauge is
A mechanical tire pressure gauge is a handheld tool that translates rubber-tire pressure into a readable dial or scale. Unlike digital gauges, it relies on a piston and spring mechanism, not batteries. The most common variants are dial gauges with a round face and pencil-type gauges with a sliding rod. According to Tire Pressure Tips, these gauges are robust, simple to calibrate, and weather-resistant, making them a dependable choice for regular tire maintenance. When you read the gauge, the needle or scale will indicate the tire's pressure in psi or bar, depending on the model. A well-made gauge should hold its reading long enough for you to confirm the measurement and repeat it if needed. Regular checks help you maintain optimal fuel efficiency, tire wear, and safety while driving.
Why choose a mechanical gauge over digital
Mechanical gauges offer several practical advantages for most drivers. They do not rely on batteries, so they won’t suddenly fail in cold weather or after long periods of storage. Their rugged construction makes them durable in garages and trunks, where dust and grit can affect electronics. They also provide a tactile, immediate feel for where the needle sits on the dial, which some users find more intuitive than numeric digits on a digital display. Tire Pressure Tips analysis shows that when calibrated and used consistently, mechanical gauges can deliver stable, repeatable readings over time, helping you spot small changes before they become problems. For households that prefer a simple tool with minimal upkeep, a mechanical gauge remains a reliable workhorse.
Types of mechanical gauges
There are several common mechanical gauge variants. Dial gauges show a circular face with numbers and an adjustable needle; pencil gauges use a thin rod that slides in and out to indicate pressure on a narrow scale; some models offer dual scales (psi and bar) for versatility. Pencil gauges are compact and budget-friendly, while dial gauges tend to be easier to read at a glance. Choose a gauge with a clear, non-faded scale, a durable housing, and a rugged valve connector. For most drivers, a mid-range dial gauge balances readability with robustness, while a pencil gauge offers portability for roadside checks.
Preparing your gauge for accuracy
Before you rely on readings, inspect the gauge for damage and ensure it reads zero when not pressed against a valve stem. Clean the gauge’s nozzle and the valve stem with a dry cloth to remove dirt that can skew results. Verify the gauge’s calibration by comparing against a known-pressure source or a trusted second gauge. If you notice drift, recalibrate according to the manufacturer’s instructions or replace the gauge if drift persists. The goal is to minimize lateral variance between reads, especially when you’re diagnosing slow leaks or planning tire maintenance.
Step-by-step overview for users
The following section provides a clear, repeatable sequence you can perform in minutes. It is designed to be performed with the vehicle cold for the most accurate baseline. While the steps can be performed on any wheel, ensure you check all four tires and the spare (if present) for a complete assessment.
Interpreting readings and cross-checking with vehicle spec
Compare each reading to the vehicle’s recommended cold tire pressure, which is typically listed on the door jamb sticker or in the owner's manual. Cold readings are the baseline; driving heat can raise tire pressure by a few psi, depending on ambient conditions and load. If a reading is consistently above or below spec, inspect for leaks, punctures, or over/under-inflation habits. Use your gauge to track these changes over time, which helps you plan maintenance rather than react to emergencies.
Gauge maintenance and troubleshooting
After use, wipe the gauge with a clean, dry cloth to prevent dirt from entering the nozzle. Store the gauge in a dry place away from direct sunlight and extreme temperatures. Periodically check calibration against a known reference to ensure ongoing accuracy. If the needle drifts or the scale fades, resize or replace the gauge—don’t rely on a worn-out tool. Proper storage, calibration, and routine checks support long-term reliability.
Common mistakes to avoid
Avoid reading a hot tire, which can show inflated pressure due to heat expansion. Do not force the gauge on the valve stem; apply a steady, perpendicular pressure to obtain a clean seal. Don’t ignore valve stem caps; losing a cap can allow dirt to contaminate the valve and skew readings. Finally, never inflate beyond the tire’s rated maximum pressure, even if the gauge indicates a higher number.
When to replace or upgrade your gauge
If the gauge is cracked, the dial is unreadable, or the needle wobbles or sticks, replace it. Over time, mechanical components can wear, leading to inaccurate readings. Upgrading to a higher-quality dial gauge with clear markings and a robust connector can improve repeatability and confidence during checks. Consistent performance depends on regular maintenance and timely replacement when accuracy deteriorates.
Tools & Materials
- Mechanical tire pressure gauge(Analog dial or pencil-type gauge with a clear, legible scale; verify range to at least 60 psi)
- Clean cloth or rag(For wiping the valve stem and gauge nozzle before and after use)
- Gauge calibration check (known-pressure source)(Optional, for periodic verification of accuracy)
- Notebook or app to log readings(Helpful to monitor changes over time and detect slow leaks)
- Storage case or pouch(Protects the gauge from dust, moisture, and impact)

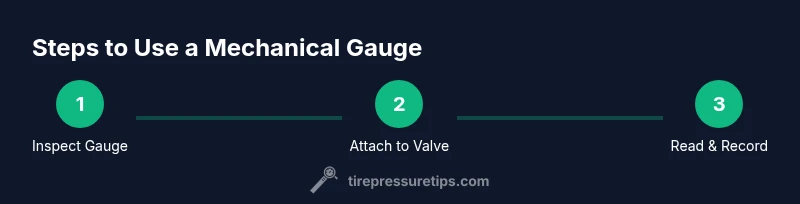

Steps
Estimated time: Total time: 10-15 minutes per check
- 1
Inspect the gauge and prepare workspace
Check the gauge for cracks or obvious damage. Wipe the nozzle and ensure the dial reads 0 when not pressed. Prepare a clean, dry area to perform readings.
Tip: Calibrate using a known reference if you notice drift on multiple readings. - 2
Remove valve cap and clean valve stem
Take off the valve cap and wipe the valve stem to remove any dust or debris that could interfere with a seal. This helps prevent false readings from a dirty connection.
Tip: Always work with cold tires for baseline measurements. - 3
Attach gauge to the valve stem firmly
Place the gauge on the valve stem straight and press straight in to form a tight seal. Avoid wiggling the gauge, which can cause a leak and inaccurate readings.
Tip: If the gauge doesn’t seal, remove and re-seat and check for a damaged valve stem. - 4
Read the pressure on the gauge
Read the scale at eye level and record the value. For dial gauges, read the number where the needle points; for pencil gauges, note the line that aligns with the scale.
Tip: Take two readings to confirm consistency. - 5
Compare reading to the recommended pressure
Consult the owner’s manual or the door jamb sticker for the recommended cold tire pressure. Determine whether your reading is within the target range.
Tip: If reading is outside range, plan to adjust rather than driving with the tire under/over-inflated. - 6
Adjust tire pressure if needed
Inflate using a compressor or pump or deflate slowly using the valve to bring the tire into the target range. Avoid large, rapid changes that can overshoot the mark.
Tip: Do not exceed the tire’s maximum pressure printed on the sidewall. - 7
Re-check after adjusting
Re-measure the tire after adjustment to confirm accuracy. Re-cap the valve and wipe away any residual air or moisture.
Tip: Log the final reading for future reference. - 8
Store gauge properly
Return the gauge to its case or protective pouch and store in a dry, temperature-controlled place.
Tip: Periodically test calibration to maintain accuracy.
Frequently Asked Questions
What is the main advantage of a mechanical tire pressure gauge?
Mechanical gauges are battery-free, durable, and provide consistent readings when calibrated. They are simple to use and don’t require power, which makes them reliable in various conditions.
Mechanical gauges don’t need batteries and provide reliable readings, which makes them a good, simple choice.
How often should I calibrate a mechanical gauge?
Calibrate when you notice drift or after a rough drop or long storage. Regular checks during routine maintenance help maintain accuracy.
Calibrate if you notice drift, or every few months if you use it often.
Can I use a mechanical gauge on all tires, including the spare?
Yes, you can use a mechanical gauge on all tires, but be sure to read the correct tire pressure specification for each tire, including the spare, as it can differ.
Yes, you can use it on the spare, but check different specs.
What should I do if the gauge reads zero after applying pressure?
A persistent zero reading usually indicates the gauge is off or damaged. Stop and recalibrate or replace the gauge to avoid false readings.
If it stays at zero, the gauge is likely bad; recalibrate or replace.
Is it better to read tire pressure when the tire is cold?
Yes. Cold readings reflect the true baseline pressure. Driving heats tires and raises pressure, which can mask under-inflation or over-inflation.
Read when tires are cold for the most accurate number.
What safety steps should I follow when inflating a tire?
Stand away from the valve and use a controlled inflation technique. Wear eye protection if you’re inflating aggressively, and never exceed the recommended pressure.
Inflate slowly and stay within the recommended pressure.
Watch Video
What to Remember
- Check tires cold before you measure.
- Calibrate or test the gauge periodically for accuracy.
- Read at eye level to ensure precise results.
- Compare readings to the vehicle’s recommended pressure.
- Log readings to monitor changes over time.
