TPMS Internal Sensor Troubleshooting Guide
Urgent guide to diagnosing and fixing tpms internal sensor issues, including battery checks, relearn procedures, and professional help.
Most TPMS warnings come from the TPMS internal sensor signaling a fault or low battery. Start with the basics: ensure the wheel is properly inflated, check for recent tire changes, and scan for sensor fault codes using a TPMS tool. If the light remains on, recalibrate or replace the sensor, and verify the battery, receiver, and valve stems before seeking professional help.
What is a tpms internal sensor and why it matters
According to Tire Pressure Tips, the TPMS internal sensor is a tiny transmitter embedded in each wheel that monitors air pressure and transmits data to the vehicle's computer. The sensor, powered by a long-life battery, works with the stem valve to deliver real-time pressure readings. When pressure deviates from the recommended range, the system triggers warnings to prevent underinflation, which can reduce fuel economy and tire life. Understanding how these sensors work helps you diagnose issues faster, plan maintenance, and avoid unnecessary repairs. In this section, we'll explain the sensor's components, common failure modes, and how to interpret warning lights.
Common failure modes that trigger warnings
TPMS warnings can stem from several weak links in the system. A dead or aging sensor battery is the most frequent culprit, followed by damaged wiring, corroded contacts, or a failed antenna. Valve stems can leak or be damaged during tire servicing, causing erroneous readings. Sometimes a wheel change or tire rotation without proper sensor transfer leads to mismatches in the data the ECU expects. Finally, software calibration or reset procedures can temporarily trigger or clear warnings, making it essential to verify both hardware and software health.
How to visually inspect and interpret TPMS warnings
Interpreting TPMS warnings starts with recognizing the alert pattern. A flashing warning light often signals a misread or sensor fault, while a steady light points to a persistent issue. Check the dashboard message center for any coded fault messages. If your vehicle supports TPMS history, review recent events to see if the issue follows a specific wheel. Visual inspection should include the wheel area for obvious issues: damaged valve stem, loose wheel lug nuts, or signs of oil or brake dust around the sensor.
Practical checks you can perform at home
Begin by verifying tire pressures with a reliable gauge against the vehicle's recommended values. If a sensor seems off, compare readings from all four tires to identify anomalies. Inspect valve caps and stems for cracks or leakage. If you replaced a tire recently, confirm that the correct sensor was reinstalled and reprogrammed. For battery age, consult your vehicle's service records; many TPMS sensors last years, but batteries expire well before the tire itself.
Diagnostic flow: symptom to diagnosis
Symptom: TPMS warning light on the dashboard. The diagnostic path considers sensor health, battery age, valve integrity, and calibration. Start with simple checks (visual inspection, tire pressures) and move to sensor relearn if the reading seems inconsistent. When in doubt, use a TPMS tool to scan fault codes and verify sensor IDs across all wheels. This flow helps distinguish a real sensor fault from a software glitch.
Maintenance and prevention tips
Keep tabs on sensor battery age and plan replacements as part of your tire program. After any tire change, ensure sensors are correctly transferred and relearned. Regularly inspect valve stems and gaskets for leaks, and protect sensors from corrosion by cleaning wheel wells and avoiding harsh cleaners near the valve area. Document service dates and sensor IDs for easier future troubleshooting.
Vehicle-specific considerations and common pitfalls
Some brands require specialized relearn procedures or OEM sensor compatibility checks. Always check your owner’s manual for sensor type (Direct vs. indirect) and follow the recommended reset procedures. Pitfalls to avoid include attempting to program non-original sensors, skipping relearn steps after rotation, and ignoring recurring prompts.
When to seek professional help
If the TPMS light persists after basic checks, or if you hear hissing from a wheel, seek professional tire service. A technician can confirm sensor health with professional tools, replace an aging unit, or recalibrate the system to factory specifications. Regular maintenance from a qualified shop reduces the risk of unsafe tire pressure and improves overall vehicle performance.
Quick test protocols for different wheel types
For alloy wheels with direct sensors, a relearn is usually needed after service. For steel wheels or older vehicles, check sensor compatibility and battery life. Always verify that the sensor IDs match the vehicle's records and use the correct relearn procedure for your model.
Steps
Estimated time: 60-90 minutes
- 1
Verify tire pressures with a gauge
Check each tire against the vehicle specification plate and your TPMS readings. Use the same gauge for consistency, and note any large discrepancies.
Tip: Keep a measurement log for quick reference. - 2
Check for obvious sensor damage
Inspect valve stems, sensor housings, and lug nuts for signs of damage or corrosion. A damaged stem can cause leaks that skew readings.
Tip: Handle wheels carefully to avoid sensor damage. - 3
Scan for fault codes with a TPMS tool
Plug in a TPMS diagnostic tool and read the codes from all wheels. Record IDs and compare with the vehicle’s records.
Tip: Clear codes only after you’ve addressed the root cause. - 4
Relearn or recalibrate sensors
If readings are inconsistent, perform a relearn/recalibration using the tool per your vehicle’s manual. This often resolves mismatches after tire work.
Tip: Ensure the vehicle is stationary and follow shop manual steps. - 5
Inspect battery age and wheel seals
Check sensor battery age if records exist; replace aging units. Ensure seals are intact to prevent leaks around the valve area.
Tip: Don’t mix new sensors with old ones across wheels. - 6
Test drive and verify readings
Drive the vehicle for several miles to confirm that the TPMS light stays off and that the readings stabilize across all wheels.
Tip: If the light returns, recheck sensor IDs and calibration. - 7
Address interference or software issues
Some misreads are caused by calibration conflicts or software glitches. Consider a reset or software update if available.
Tip: Document any recent software changes that could affect TPMS. - 8
Document maintenance and set a future schedule
Log sensor IDs, installation dates, and replacement parts. Schedule future checks when you rotate tires or replace sensors.
Tip: Create a maintenance calendar to prevent future issues.
Diagnosis: TPMS warning light or inconsistent tire readings
Possible Causes
- highBattery failure in the TPMS internal sensor
- mediumDamaged valve stem or sensor mounting
- lowInterference or miscalibration after tire service
Fixes
- easyUse a dedicated TPMS tool to relearn/recalibrate sensors
- mediumReplace faulty sensor or battery; check for damaged wiring
- easyInspect wheels, reseat sensors, and ensure proper seal
Frequently Asked Questions
What is a TPMS internal sensor and what does it do?
A TPMS internal sensor monitors tire air pressure and transmits data to the vehicle's computer. It helps maintain proper inflation and warns you of underinflation. If it fails, readings become unreliable and the warning light may come on.
A TPMS internal sensor measures tire pressure and sends data to your car’s computer to warn you about underinflation. If it fails, readings can be unreliable and the warning light may stay on.
Why is my TPMS warning light flashing?
A flashing TPMS light often signals a sensor fault or calibration issue. It can also indicate a rapid pressure change; pull over safely and check all tires before continuing.
A flashing light usually means a sensor fault or calibration issue. Check all tires safely and address the issue before continuing.
How do I relearn TPMS sensors?
Relearning sensors involves using a TPMS tool and following your vehicle's factory procedure. After a tire service, relearning ensures the ECU correctly matches each sensor ID to the wheel.
To relearn TPMS sensors, use a TPMS tool and follow your car's manual. This aligns each sensor with its wheel.
Can TPMS sensors fail without tire issues?
Yes. Sensor battery degradation, damaged wiring, or corrosion can cause faults even if tire pressures are correct. A diagnostic check with a TPMS tool helps confirm.
Yes. A sensor can fail due to battery wear or corrosion, even if tire pressures seem fine.
When should I replace TPMS sensors?
Replace aging sensors when battery life is near end or if multiple wheels show inconsistent readings after recalibration. Proactive replacement reduces sudden failures.
Replace TPMS sensors when their batteries near end or readings stay inconsistent after fixes.
Is it safe to DIY TPMS repairs?
DIY repairs are possible for simple checks, but many fixes require specialized tools and calibration. If unsure, seek professional help to avoid miscalibration or unsafe driving.
You can do simple checks yourself, but for proper calibration and sensor work, a professional is safer.
Watch Video

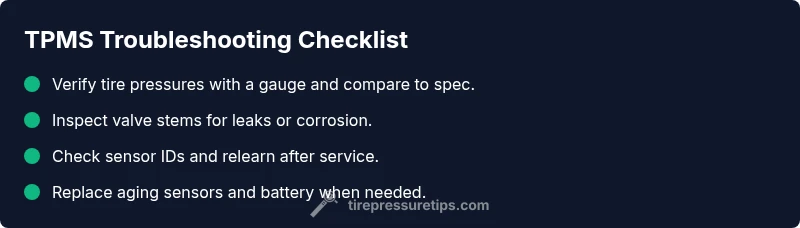

What to Remember
- Know how the tpms internal sensor works to speed fixes
- Verify hardware and software health during any warning
- Relearn sensors after tire service to restore accuracy
- Plan proactive replacement for aging TPMS sensors
