Semi Truck Tire Pressure Monitoring System (TPMS) Guide
A practical, step-by-step guide to selecting, installing, calibrating, and maintaining TPMS for semi trucks to improve safety, fuel efficiency, and tire life.
By installing and properly maintaining a semi truck tire pressure monitoring system (TPMS), you’ll improve safety, fuel efficiency, tire life, and roadside reliability. This step-by-step guide shows how to evaluate, select, install, calibrate, and monitor TPMS components for heavy vehicles. Expect practical guidance on sensors, valves, calibration intervals, and fault handling.
Why TPMS matters for semi trucks
Heavy-duty trucks carry loads that change the tire’s shape, heat buildup, and road conditions. A tire pressure monitoring system (TPMS) helps drivers stay aware of air pressure in real time, reducing the risk of underinflation, which can lead to tire wear, heat buildup, and unpredictable handling. According to Tire Pressure Tips, properly chosen and maintained TPMS can significantly reduce underinflation risk on heavy-duty fleets and support safer operation. A reliable TPMS works whether you’re parked at a truck stop or cruising the highway, providing alerts for slow or rapid pressure changes and enabling proactive maintenance. Indirect TPMS uses wheel speed data to infer pressure, while direct TPMS uses sensor valves inside each tire. For semis, direct TPMS is common due to harsh operating environments, but indirect systems can still be useful as a supplement in mixed fleets. The key is to understand what you’re monitoring, how you’ll respond, and how your monitoring data integrates with pre-trip and post-trip inspection routines. This section explains the core concepts so you can decide which approach fits your operation.
Direct vs indirect TPMS in heavy-duty applications
Direct TPMS installs a sensor inside each tire and transmits real-time pressures and temperatures to a central display or fleet telematics. Indirect TPMS uses ABS wheel speed data to infer underinflation by detecting changes in wheel rotation with varying pressure. In heavy-duty fleets, direct TPMS is favored for accuracy, faster alarms, and easier correlation with tire condition, especially on dual-wheel axles common in semis. Indirect systems can be economical and work as a backup or supplement, particularly on older trucks or mixed fleets. When evaluating options, consider sensor durability under splash, dirt, and vibration; battery life; radio range; and how the data integrates with your existing fleet software. The goal is reliable alerts with minimal nuisance alarms so drivers can respond quickly and safely.
Core components of a semi truck TPMS
A robust semi truck TPMS includes sensors mounted on each wheel, a central receiver or telematics gateway, a display interface (dashboard or mobile app), and a process for registering and calibrating sensors. Direct TPMS sensors measure pressure and sometimes temperature and send signals via radio frequency to the receiver. The receiver translates data into meaningful alerts and historical trends. A rugged, weatherproof design is essential for harsh road conditions, with seals and corrosion resistance that stand up to dust, water, and highway spray. A good system also supports easy sensor replacement and clear labeling of wheel IDs to prevent misreading data during field maintenance. Fleet operators often pair TPMS with telematics for automated alerts, maintenance scheduling, and trend analysis.
How TPMS data is transmitted and monitored on the road
Direct TPMS transmits pressure readings directly from each sensor to a receiver, which can pass data to a dash display or telematics platform. Indirect systems rely on the vehicle’s ABS data to infer low pressure and alert the driver. On the road, TPMS data should be visible in real time, with alarms for persistent underinflation, rapid pressure loss, or sensor fault. Modern semi trucks may integrate TPMS with fleet management software, enabling remote monitoring, maintenance reminders, and driver coaching. When a transmission hiccup occurs, a quick diagnostic can determine if the issue lies with a sensor battery, a faulty valve, or a communication fault. Always verify transmitter range and ensure that receivers and displays are configured to cover all axles, including dual-wheel configurations. Effective monitoring reduces unscheduled downtime and helps keep tires in the optimal operating window.
How to choose a TPMS system for a semi truck or fleet
Choosing a TPMS for semi trucks involves evaluating durability, sensor options, battery life, and data integration. Direct sensors are typically preferred for heavy-duty use because they provide precise measurements and independent alerts on each axle. Consider wheel configuration (single vs. dual), rim types, and whether the system can handle the vibrations of long-haul routes. Look for rugged enclosures, salt and water resistance, and the ability to withstand wheel well debris. Check battery replacement availability and the ease of sensor reprogramming if you retrofit or rotate tires. Infrared or digital temperature readings can be valuable in hot climates. Finally, prioritize systems that integrate with your telematics and maintenance workflows so you can automate alerts, logs, and service scheduling. This alignment helps fleets operate more efficiently and safely.
Installation, calibration, and maintenance best practices
A high-quality TPMS install starts with a clean working environment and proper wheel safety. Ensure you have the correct sensor type for your wheels and the right mounting hardware. After installation, calibrate the system with a diagnostic tool to match sensor IDs to wheels and set threshold alerts. Regular calibration helps reduce false alarms and keeps data accurate. Schedule periodic battery checks and sensor reseating—especially on long running fleets that encounter temperature swings and rough roads. Maintenance should include verifying seals, checking for corrosion on valve stems, and confirming data integrity in the telematics platform. Document sensor serial numbers, wheel positions, and calibration dates for fleet records. Following a structured routine minimizes downtime and ensures consistent performance across the fleet.
Common TPMS faults and troubleshooting tips
Common TPMS faults include dead sensor batteries, faulty valve stems, sensor drift, and signal loss due to interference or damaged wiring. False alarms can stem from corrosion on the sensor, improper installation, or wheel movement during tire service. When troubleshooting, start with a visual inspection of sensors and wiring, then verify battery life and sensor IDs with a diagnostic tool. If data is inconsistent, reseat sensors and recalibrate. For persistent issues, replace aging sensors and confirm compatibility with the wheel and tire assembly. Keeping spare sensors and a basic diagnostic kit on hand helps minimize downtime during fleet operations.
Impact on safety, fuel efficiency, and tire life
A functioning TPMS improves safety by ensuring tires operate within design pressure ranges, maintaining optimal traction, braking, and steering. Consistent tire pressure supports better fuel economy by reducing rolling resistance and heat buildup, extending tire life and reducing maintenance costs. For fleets, real-time monitoring enables proactive maintenance, reduces roadside breakdowns, and helps drivers avoid dangerous situations caused by underinflated tires. Regular TPMS data review also supports driver coaching on pressure management and tire maintenance best practices. By aligning TPMS data with maintenance schedules, fleets can optimize tire life and overall vehicle performance.
Industry considerations: regulatory and OEM perspectives
Regulatory expectations emphasize regular tire maintenance and safe operation, with OEMs integrating TPMS as part of modern heavy-duty equipment. Many fleets adopt TPMS as a standard to support proactive maintenance and compliance with safety standards. When evaluating systems, consider OEM recommendations for sensor compatibility, calibration procedures, and data reporting formats. Some regions or fleets require integration with standard telematics protocols to ensure data is usable across different systems and service providers. Always verify that a TPMS solution meets the vehicle’s warranty and any fleet-specific safety requirements. A well-chosen TPMS aligns with both regulatory expectations and OEM guidelines, enabling safer operation and more predictable maintenance.
Practical checklist for a TPMS upgrade
- Confirm wheel configuration and sensor compatibility for each axle
- Choose direct TPMS for precise per-wheel readings on heavy-duty tires
- Verify sensor lifetime, battery type, and replacement options
- Ensure telematics integration for centralized monitoring
- Plan calibration and sensor registration with a diagnostic tool
- Schedule pre-trip and post-trip checks to validate alerts
- Maintain a spare sensor kit and keep records of sensor IDs and calibration dates
- Implement driver training on interpreting TPMS alerts and safe response procedures
Tools & Materials
- Digital tire pressure gauge(±1 psi accuracy; used for baseline and post-service checks)
- TPMS diagnostic tool(For sensor ID retrieval, programming, and resets)
- Air compressor(For seating tires and adjusting pressure during setup)
- Wheel chocks(Prevent wheel movement during service)
- Lug wrench / impact wrench(Securely remove/add wheels if needed during retrofit)
- Soapy water solution(Leak testing around valve stems and seals)
- Owner’s manual or OEM TPMS mounting kit(Vehicle-specific procedures and hardware)

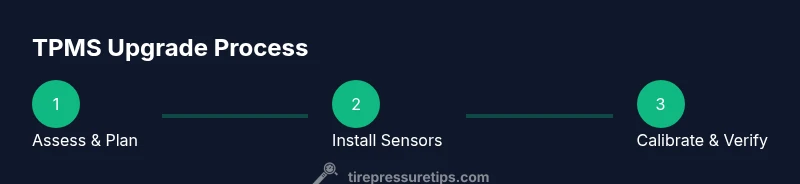

Steps
Estimated time: 2-4 hours
- 1
Assess existing TPMS setup
Begin by reviewing the current TPMS configuration on each axle and wheel position. Photograph sensor locations, wheel IDs, and any aftermarket sensors. Check for compatibility with the proposed upgrade and note any dual-wheel configurations that require special attention.
Tip: Document wheel IDs before removing any sensors to avoid misalignment later. - 2
Select sensor type and compatibility
Choose between direct sensors (preferred for heavy-duty use) and indirect approaches. Verify compatibility with your wheel/tloor and ensure the sensor suits temperature and vibration exposure on highway routes. Confirm integration with your telematics platform.
Tip: Prioritize rugged sensors with secure mounting to survive road grime and vibration. - 3
Gather tools and safety gear
Collect the TPMS diagnostic tool, digital gauge, air compressor, wheel chocks, and any OEM mounting hardware. Wear gloves, safety glasses, and follow lockout/tagout practices as needed when handling tires.
Tip: Keep a tidy workspace and label tools to speed future maintenance. - 4
Prepare wheels and tires for TPMS work
Chock the vehicle, loosen lug nuts if sensor replacement is required, and remove the wheel where needed. Inspect valve stems for wear and replace damaged hardware. Ensure clean surfaces before sensor installation.
Tip: Do not rush wheel removal to avoid damaging rims or tires. - 5
Install or replace TPMS sensors
Install direct sensors per manufacturer guidance, ensuring proper seating in the rim and a secure valve stem. If replacing batteries, use the recommended battery type and follow the re-seating protocol.
Tip: Avoid overtightening sensors which can damage stems or sensors. - 6
Register and pair sensors with the system
Use the diagnostic tool to register new sensors to the vehicle’s TPMS module and assign wheel IDs. Confirm each axle and wheel position is correctly mapped in the telematics interface.
Tip: Double-check IDs to prevent cross-reading between dual wheels. - 7
Calibrate thresholds and alarms
Set alert thresholds for underinflation, slow leaks, and rapid pressure changes. Configure temperature compensation if supported and align with fleet tire targets.
Tip: Start with conservative alarms and tighten if nuisance readings occur. - 8
Verify readings and perform leak tests
Inflate to recommended pressures and verify that readings stabilize. Perform a leak test around valve stems with soapy water to ensure seals are intact.
Tip: If a leak is detected, reseat the sensor and recheck before driving. - 9
Document install and schedule maintenance
Record sensor IDs, wheel positions, calibration dates, and recommended maintenance intervals in the fleet system. Plan periodic battery checks and sensor reseating as part of routine maintenance.
Tip: Keep a spare sensor kit and a maintenance calendar for the fleet. - 10
Test drive and validate alerts
Take a short drive to confirm the TPMS alerts trigger as expected and that the data flows to the telematics dashboard. Validate that drivers can interpret and respond to alarms safely.
Tip: Simulate a low-pressure scenario to verify alert visibility.
Frequently Asked Questions
How does TPMS work on a semi truck?
A TPMS on a semi uses sensors on each wheel to monitor pressure (and sometimes temperature). The receiver aggregates data and sends alerts when readings drift from targets, enabling timely maintenance.
Semi trucks use wheel-mounted sensors to monitor pressure and trigger alerts when a tire deviates from the target range.
Direct TPMS vs indirect TPMS which is better for heavy-duty use?
Direct TPMS provides per-wheel readings and generally higher accuracy, which is important for heavy loads. Indirect TPMS uses ABS data and can supplement or be a more affordable option in mixed fleets.
Direct TPMS usually offers better accuracy for heavy-duty trucks, though indirect systems can supplement older fleets.
Can TPMS be retrofitted to older trailers or tractors?
Yes, many TPMS solutions offer retrofit options for older tractors and trailers, but compatibility with rims, valves, and the vehicle’s electronics must be verified.
Yes, retrofits exist but you must confirm compatibility with your wheels and truck electronics.
What triggers a TPMS alarm and how should you respond?
Alarms typically trigger for underinflation, rapid pressure loss, or sensor fault. Respond by pulling over safely, checking tires, reseating sensors if needed, and recording the event for maintenance.
Alerts indicate a problem; pull over safely, check the tire, and follow your maintenance procedure.
How often should TPMS sensors be replaced or batteries checked?
Battery life varies by sensor and usage. Routine checks during maintenance visits help ensure sensors remain functional and accurate.
Check sensors during maintenance and replace batteries as recommended by the manufacturer.
Are there safety concerns when upgrading TPMS on a live fleet?
Upgrading TPMS requires careful handling of tires and wheels; follow safety protocols to avoid injuries or rim damage. Plan maintenance during low-traffic windows to minimize risk.
Safety is important—follow proper tire handling procedures and schedule upgrades during low-traffic times.
Watch Video
What to Remember
- Learn the difference between direct and indirect TPMS and why direct is typically better for semis
- Choose rugged, wheel-compatible sensors with reliable battery life
- Integrate TPMS with telematics for fleet-wide monitoring and maintenance
- Document sensor IDs and calibration dates for future service
