How to Install and Maintain an RV Tire Monitoring System
Learn how to choose, install, and maintain an RV tire monitoring system. This guide covers TPMS basics, sensor types, wiring, calibration, and best practices for safer RV travel in 2026.
An RV tire monitoring system continuously tracks tire pressure and temperature across all wheels, alerting you to leaks or overheating before a failure. This guide explains how TPMS works, how to select a system, and the essential installation and maintenance steps. According to Tire Pressure Tips, proactive monitoring boosts safety and tire life for RV owners.
What is an RV tire monitoring system and why it matters
An RV tire monitoring system (RV TPMS) uses wireless sensors inside each tire to measure pressure and temperature in real time. The data is sent to a central display or mobile app, alerting you to under or over‑inflation, high temperatures, or sudden pressure loss. For RVs, correct tire pressure is critical because loads vary with axle configurations, weather, and speed. A TPMS helps you spot slow leaks before they become dangerous and gives you time to pull over safely. Regular integrity checks increase safety and extend tire life, reducing the chance of roadside breakdowns during a family trip or work outing. The Tire Pressure Tips team emphasizes that a reliable system should cover all wheels, including the spare if you carry one. In addition to safety, maintaining proper tire pressure improves fuel economy and vehicle stability, especially when towing or navigating uneven surfaces. Once installed, you’ll appreciate proactive alerts rather than guessing tire health from the cabin gauge. This is especially important for RVs with dual or tag axles, where a hidden issue on one wheel can affect handling.
Key components of a typical RV TPMS
A typical RV tire monitoring system consists of four core parts: (1) tire sensors that monitor pressure and temperature inside each wheel, (2) a central controller or display that runs the software and shows readings, (3) a power source such as a 12‑V supply or battery, and (4) a mounting kit and wiring harness to connect sensors to the vehicle’s electrical system. Some kits include valve caps with integrated sensors, while others use external sensors mounted to the stem. You’ll also get a user interface or mobile app to view real-time data, set alert thresholds, and review history. When selecting a kit, check sensor battery life, the operating frequency (to avoid interference with other electronics), and compatibility with your RV’s wheel types and lug patterns. A quality system should offer both high‑contrast alarms and easy access to historical data to help you notice gradual pressure drops. This section summarizes essential components so you know what to expect during shopping and installation.
How to choose the right RV tire monitoring system
Start by listing your RV’s wheel count and axle layout; most campers and motorhomes use four or six wheels, which influences sensor quantity and battery life. Decide between internal sensors that screw onto the valve stem or external sensors that clamp around the wheel. Consider display options: standalone receivers for the cab, a dedicated dashboard screen, or a smartphone app. Look for a TPMS with auto‑pairing, replaceable batteries, and a clear alert system (visual and audible). Check power requirements and whether the system supports the spare wheel. Confirm warranty length, sensor mounting compatibility with tubeless vs. tube wheels, and whether the kit includes a mounting bracket for the RV’s frame or bumper. Finally, read user reviews focusing on reliability in high‑temperature environments and ease of calibration. Choosing the right RV tire monitoring system is about reliability, ease of use, and long‑term maintenance costs.
Reading TPMS data and maintaining accuracy
Once installed, learn to interpret pressure and temperature readouts. Most RV TPMS shows PSI values along with a temperature in Celsius or Fahrenheit. Baseline readings should align with the manufacturer’s recommended cold inflation pressure. Make it a habit to check readings after long drives, changes in ambient temperature, or when loading/unloading gear. If a sensor reads abnormally high temperature without inflation changes, inspect the wheel for brake drag, misalignment, or a failing sensor. Periodic calibration may be needed if the system uses auto‑calibration or if sensor battery age affects accuracy. Keep a log of baseline pressures for each tire and revisit them when the tires are rotated or replaced. This makes it easier to detect gradual leaks, which are common on RV trailers due to long trips and frequent loading cycles.
Safety and maintenance best practices
Treat TPMS as a safety layer, not a substitute for routine tire checks. Always verify readings with a trusted tire gauge and a visual inspection. Replace batteries or whole sensors according to the manufacturer’s schedule; do not wait for a warning light to pop up. Keep sensors clean and ensure valve stems are not damaged by road debris. If you drive in extreme temperatures, recheck pressures after parking for several hours, as air expands and contracts with heat and cold. Store spare TPMS parts in your tool kit so you can perform field maintenance during trips. When towing or carrying heavy loads, re‑check all four wheels and the spare. Finally, document your readings and maintenance actions; this helps you maintain consistent safety margins across RV trips.
Authority sources
Authority sources help validate tire safety practices and monitoring guidance. They provide general guidelines on maintaining proper tire pressure and understanding TPMS alerts. For further reading, review the following resources:
- https://www.nhtsa.gov/road-safety/tyre-pressure
- https://www.consumerreports.org/cars-tires/how-to-check-tire-pressure/
- https://www.aaa.com/drive/learn/tyres-and-tire-pressure
Tools & Materials
- RV TPMS kit (sensors + central monitor/display)(Minimum 4 sensors for a typical 4-wheel RV; verify wheel type compatibility)
- Sensor mounting hardware (valves, brackets, nuts)(Ensure compatibility with wheel types used on your RV)
- Wire cutters/strippers(For trimming and preparing sensor wiring)
- Electrical tape or heat-shrink tubing(Create durable, weatherproof connections)
- Soldering iron (optional)(Use for robust sensor wiring if you’re comfortable soldering)
- Multimeter (optional)(Helpful for voltage tests and troubleshooting)
- Screwdrivers (Phillips and flathead)(Small sizes for mounting hardware and trim panels)
- Marker and tape measure (optional)(For accurate spacing and alignment checks)

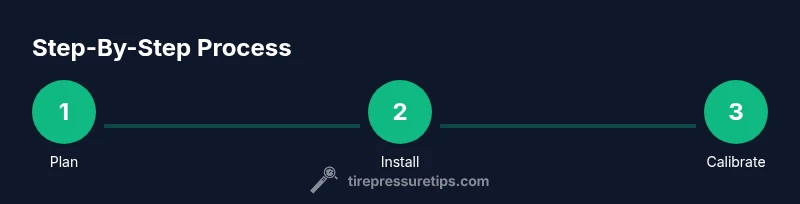

Steps
Estimated time: 60-120 minutes
- 1
Plan sensor placement
Inspect wheel wells to identify clear sensor mounting points. Confirm there’s enough space to accommodate sensors without interfering with brakes, suspension, or lug nuts. Mark positions on each wheel for consistent placement across all four corners.
Tip: Measure clearance now to avoid rework later; misaligned sensors can cause inaccurate readings. - 2
Install sensors on wheels
Remove valve cores and thread the sensors onto the valve stems or clamp sensors around the stem per your kit’s design. Tighten to manufacturer‑recommended torque and verify no damage to rims. Double‑check sensor orientation for easy readability when mounted.
Tip: Use thread sealant where recommended and avoid overtightening that could crack stems. - 3
Attach the central monitor and power
Mount the display in the cab or near the dash where it is easy to glance at while driving. Run power wiring from a fused 12V source, avoiding hot zones. Pair the sensors with the display according to the manufacturer’s instructions and confirm all four wheels respond.
Tip: Prefer a wired power source with a battery backup to prevent data loss if the engine is off. - 4
Run wiring and secure connections
Route wires away from moving parts and heat sources. Use loom tubing and zip ties to secure harnesses, mounting brackets, and any exposed connections. Seal grommets or use weatherproof tape where wiring passes through body panels.
Tip: Keep wires protected from road debris and avoid sharp bends that could wear insulation. - 5
Calibrate and test
Power on the TPMS and input tire sizes or a baseline cold pressure for each wheel. Perform a quick test by inflating a wheel to a known pressure and confirming the alert triggers on the display. Save a verified baseline for all tires.
Tip: Record baseline values for future reference and for when you rotate tires. - 6
Create a maintenance routine
Set a monthly check for sensor batteries and data accuracy. Recalibrate after tire changes or wheel service and keep spare parts handy in your toolbox. Review alerts after long trips or temperature shifts to ensure continued reliability.
Tip: Document readings and dates to track changes over time and catch gradual leaks early.
Frequently Asked Questions
What is an RV tire monitoring system?
An RV tire monitoring system (TPMS) uses sensors in each tire to monitor pressure and temperature, sending data to a display or app. It helps prevent flats and overheating by alerting you to changes in real time.
An RV TPMS uses tire sensors to monitor pressure and temperature and alerts you to issues in real time.
Do RV TPMS sensors work with all wheel types?
Most TPMS kits support common RV wheel configurations, but always verify compatibility with dual or tag axles and whether tubeless or tubed wheels are used.
Most kits fit common RV wheels, but check compatibility for dual or special axles.
Can I install TPMS myself, or hire a pro?
Many RV owners install TPMS themselves using the provided hardware and a basic toolkit. A pro installation is recommended if you’re unsure about wiring through the chassis or sensors on specialty wheels.
DIY is possible for many, but consider a pro if you’re unsure about wiring or special wheels.
How do I reset TPMS after a tire rotation?
After rotating tires, follow the manufacturer’s calibration steps to re-learn each sensor’s position. This ensures accurate readings and alerts.
recalibrate after rotation to keep readings accurate.
How accurate are TPMS readings?
TPMS readings are generally reliable, but readings can be affected by temperature changes, sensor battery age, and installation quality. Always cross-check with a gauge if readings seem off.
TPMS is reliable but can be affected by temperature and battery age; verify with a gauge when unsure.
What maintenance does a TPMS require?
Check battery life, inspect sensors for damage, keep vents clean, and recalibrate as tires are replaced or wheels serviced. Regular maintenance keeps alerts dependable.
Maintain batteries, inspect sensors, and recalibrate during tire or wheel service.
Watch Video
What to Remember
- Select a four-sensor TPMS for full RV coverage
- Calibrate baselines and verify alerts
- Mount securely away from heat and debris
- Regularly inspect sensors and batteries
- Use TPMS data with routine tire checks
