TPMS Sensor Replacement - Tire Pressure Tips

Quick AnswerSteps

You will learn how to safely replace a TPMS sensor, verify battery health, and reset the system after installation. This guide covers required tools, sensor types, safety cautions, and a clear step-by-step process. By following these actions, you’ll restore accurate readings, prevent false warnings, and know when to repair versus replace.

tire pressure monitoring system sensors replacement: overview

Replacing a tire pressure monitoring system sensor is an increasingly approachable task for many drivers. The tire pressure monitoring system sensors replacement process covers choosing the right sensor type, removing the wheel, gaining access to the sensor, and performing a secure install. According to Tire Pressure Tips, improper handling can damage the sensor or the valve stem, leading to leaks or inaccurate readings. This article explains sensor anatomy, life expectancy, and what to expect during replacement. You will learn about direct TPMS sensors (mounted inside the wheel) and indirect systems that use wheel speed data; most modern vehicles use direct sensors with replaceable batteries or transmitters. When you encounter a failed sensor, you should consider battery health, stem corrosion, thread damage, and wheel assembly compatibility. For best results, rely on the vehicle’s service manual and factory specifications. Always practice safe lifting and avoid running tires with a severely under-inflated condition. After replacement, you may need to program or relearn the sensor IDs in your vehicle’s TPMS control module.

When to replace a TPMS sensor

A TPMS sensor may need replacement when readings are inconsistent, the warning light stays on despite proper inflation, or a tire has been damaged and the sensor is compromised. Common signs include erratic pressure readings, rapid changes as the vehicle travels, or the sensor battery failing to transmit a signal. If the stem is corroded, if the wheel has damaged threads, or if a seal leaks air, replacement is prudent. In some cases, tire rotation or wheel changes do not address the issue; a direct sensor replacement may be necessary. The Tire Pressure Tips team notes that prolonged driving with faulty TPMS sensors can mask under-inflation risks, affecting tire wear and fuel efficiency.

Tools, parts, and safety prerequisites

A successful TPMS sensors replacement requires careful planning and the right tools. Essential items include a torque wrench, a new TPMS sensor, a valve-core removal tool, a tire removing machine or bead breaker, soapy water for leaks detection, and a relearn tool or compatible scan tool. Optional but helpful items include a bead seating tool and anti-seize compound. Safety prerequisites include wearing eye protection, disconnecting the battery if working near electrical connectors, and ensuring the car is securely lifted with jack stands. Always follow the vehicle manufacturer’s torque specs when tightening lug nuts and sensor mounting hardware. Its important to work in a clean, well-lit space to prevent contamination of sensor seals and to avoid introducing moisture into the wheel assembly.

Step-by-step: replacing a TPMS sensor

Prepare and gather tools: Assemble the new sensor, torque wrench, stem tool, jack stands, and the relearn tool. This reduces interruptions during the procedure and minimizes handling of sensitive components. Tip: keep a spare valve stem seal handy in case the old one shows wear.
Deflate and remove wheel: Deflate the tire completely before removing it from the rim to avoid bead damage. Detach the tire from the wheel using appropriate equipment, then inspect the rim for damage. Tip: use tire-changing lubricant to ease bead sealing when reseating the tire.
Access and remove old sensor: Locate the TPMS sensor inside the wheel, disconnect the electrical connector, and remove the old sensor bolts. Inspect the valve stem for cracks or corrosion. Tip: take photos of the wiring route to ensure correct reassembly.
Install new sensor and seal: Install the new TPMS sensor, torque to spec, and reseal the valve stem. Apply anti-seize or thread sealant where approved by the manufacturer. Tip: lubricate the bead area to minimize bead damage during tire seating.
Reinstall tire and torque lug nuts: Mount the tire back onto the wheel, inflate to the recommended pressure, and replace lug nuts to factory torque. Verify there are no leaks around the valve stem with soapy water. Tip: check wheel balance if the sensor adds significant weight.
Reset/relearn TPMS in vehicle: Use the vehicle’s TPMS relearn procedure or a scan tool to program the new sensor IDs. This step ensures the ECU recognizes the sensor and starts transmitting data correctly. Tip: perform relearn with a cold tire for consistent readings.

Calibrating and verifying the sensor after replacement

After installation, calibrate the TPMS for accurate readings. Start with inflating all tires to the recommended pressure when cold, then use a scan tool to trigger a relearn cycle if your vehicle requires it. Drive the car at an average speed for a short period while monitoring the TPMS indicator. If the light remains on, recheck the sensor ID in the tool, confirm the battery is healthy, and verify the seal at the valve stem. Some vehicles require a specific relearn sequence, such as sequence-based wheel rotation or a dedicated sensor programming tool. Tire pressure stability and consistent readings after driving are the signals of a successful replacement.

Troubleshooting common TPMS issues after replacement

Common issues after sensor replacement include a persistent warning light, inaccurate pressure readings, or a missing sensor ID. If the light stays on after relearn, confirm the sensor battery health and check for proper wiring connections. A loose or damaged connector can prevent data transmission. Intermittent readings may indicate a poor seal at the valve stem or a damaged tire bead. In some cases, the vehicle may require a longer relearn period or additional wheel position adjustments. Always refer to your owner’s manual for the exact relearn procedure.

Maintenance tips to extend TPMS sensor life

Regularly inspect TPMS sensors during tire service and look for corrosion, cracked stems, or damaged seals.
Use compatible valve stems and avoid overtightening which could crack the housing.
Keep the wheel and sensor area clean and dry to prevent corrosion and build-up.
Schedule preventative replacements for batteries when the vehicle is approaching sensor life expectancy. Lithium batteries are common in newer direct TPMS sensors and have limited service life.
Perform a relearn after any tire service to ensure accurate readings.

AUTHORITY SOURCES

National Highway Traffic Safety Administration (NHTSA) – Tires and TPMS basics: https://www.nhtsa.gov/vehicle-safety/tires
NHTSA TPMS information: https://www.nhtsa.gov/vehicle-safety/tire-pressure-monitoring-systems-tpms
Major publication guidance on TPMS maintenance: https://www.consumerreports.org/car-maintenance/tpms-sensor-replacement/

Tools & Materials

Torque wrench(Use to specification for sensor mounting bolts and lug nuts)
New TPMS sensor (OEM or aftermarket)(Ensure compatibility with vehicle model and wheel size)
Valve core tool(For removing/replacing valve cores)
Bead breaker or tire machine(Allow bead removal without rim damage)
Soapy water (leak detection)(Check for air leaks at valve stem during reseating)
Relearn tool/scan tool(Needed to program sensor IDs to the vehicle)
Valve stem seal (optional)(Useful if the old stem is worn)
Safety gear (gloves/eye protection)(Protect hands and eyes during tire work)

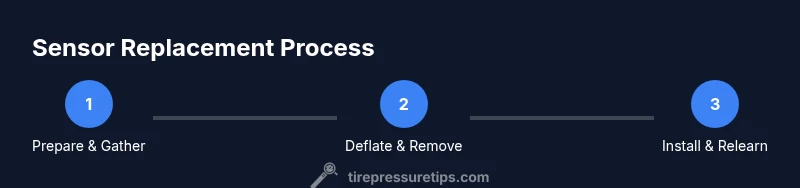

Steps

Estimated time: 60-90 minutes

1
Prepare and gather tools
Assemble the new TPMS sensor, torque wrench, valve-core tool, relearn tool, bead breaker, and a compatible tire iron. Having everything ready minimizes interruptions and helps maintain correct torque specs.
Tip: Double-check vehicle compatibility before purchase.
2
Deflate and remove wheel
Completely deflate the tire, then remove it from the rim with the appropriate machine or prying tools. Inspect the rim and bead area for damage before proceeding.
Tip: Lubricate the bead area lightly to ease reseating.
3
Access and remove old sensor
Disconnect the electrical connector, remove mounting bolts, and take out the old sensor. Inspect the stem and surrounding area for corrosion or wear.
Tip: Take a photo of wiring routes for accurate reassembly.
4
Install new sensor and seal
Install the new TPMS sensor, torque to spec, and seal the valve stem as required by manufacturer guidelines.
Tip: Avoid overtightening which can crack the stem.
5
Reinstall tire and torque lug nuts
Mount the tire on the wheel, inflate to the vehicle’s recommended cold pressure, and tighten lug nuts to factory torque specs.
Tip: Recheck tire pressure after seating the bead.
6
Reset/relearn TPMS in vehicle
Use the vehicle’s relearn procedure or a scan tool to register the new sensor IDs. Confirm that all tires report valid readings.
Tip: Avoid driving with a low battery or a loose connection during relearn.

Pro Tip: Always work on a cool tire to avoid heat expansion affecting pressure readings.

Warning: Do not mix sensor types on the same axle unless the vehicle manufacturer approves it.

Note: Keep spare valve stems and seals on hand in case of stem wear or damage.

Frequently Asked Questions

Can I replace a TPMS sensor myself, or should I hire a professional?

Replacing a TPMS sensor can be DIY for some vehicles, especially if you have the right tools and basic mechanical skills. Some models require specialized relearn procedures or wheel-mounted sensors that benefit from professional service. Always consult your vehicle’s manual and consider safety concerns before proceeding.

How long does TPMS sensor replacement take?

Typical replacement takes about 60 to 90 minutes for a complete wheel and sensor install, including relearn. Time can vary based on vehicle type and whether the tire can be removed easily.

Do sensor batteries need replacement separately?

Many direct TPMS sensors come with non-replaceable batteries, so replacing the sensor is the practical option. Some newer models use replaceable batteries, but this is less common and often requires a sensor-specific procedure.

What are common signs that a TPMS sensor needs replacement?

Frequent false readings, warning light on without changes in tire pressure, corroded stems, or physical damage to the valve stem are common indicators that a TPMS sensor needs replacement.

Is there a difference between OEM and aftermarket TPMS sensors?

OEM sensors are built to exact factory specifications, while aftermarket options can be cheaper but may vary in durability or compatibility. Check vehicle-specific listings and ensure proper programming for reliable readings.

Do I need to reset the TPMS after installation if I don’t see a warning light?

Even if the warning light isn’t on, most vehicles require a relearn to recognize the new sensor IDs. Use the vehicle’s manual guidance or a scan tool to complete the process.
