Automatic Tire Inflation System: How It Works, Install, and Maintain
A comprehensive, step-by-step guide to automatic tire inflation systems (ATS): what they do, how they work, installation considerations, calibration, maintenance, and best practices for 2026 drivers.
An automatic tire inflation system (ATS) automatically adjusts tire pressure toward predefined targets as you drive, using a compressor, sensors, and a central controller. It helps prevent under- or over-inflation, improves fuel efficiency, and enhances tire wear and handling across varying loads and temperatures. To use ATS, confirm your vehicle supports it (OEM or aftermarket), ensure proper installation, and monitor results with TPMS and periodic checks.
What is an automatic tire inflation system and why it matters
An automatic tire inflation system, or ATS, is a vehicle technology that automatically adjusts each tire's air pressure toward predefined targets as you drive. Unlike manual checks or simple single-tire inflation devices, ATS uses a network: a compression pump, a reservoir, valve blocks at each wheel, and a central controller that compares real-time sensor data to the desired pressure. When a tire runs low or high relative to the target, the system adds or releases air via the hoses and valves. In practice, ATS helps maintain optimal contact patch, improves handling, and can reduce rolling resistance, especially when cargo changes or highway speeds vary. For drivers who frequently carry heavy loads, travel across temperature zones, or drive in changing weather, ATS offers consistent tire pressure without constant manual checks. According to Tire Pressure Tips, ATS adoption is part of a broader shift toward smart tire management that integrates with standard TPMS, weather awareness, and vehicle data. The aim is not to replace traditional tire pressure checks but to supplement them, keeping tires within safe ranges and reducing the risk of under- or over-inflation.
How ATS works with sensors, controllers, and actuators
An ATS system maintains target tire pressures by continuously monitoring wheel-end sensors and a central pressure controller. Each wheel has a valve block connected to a compact compressor and a small reservoir. When data indicates a deviation, the controller signals the pump to add air or opens a relief path to vent air. The system works in the background, typically during normal driving, so drivers may notice smoother handling and steadier tire temperatures over long trips. Because ATS interacts with the vehicle's TPMS, the system must be calibrated to the manufacturer’s target pressures and to the vehicle's load conditions. Modern ATS designs emphasize integration with drive modes, fuel economy programming, and stability control for safer, more predictable performance in diverse conditions. Tire Pressure Tips highlights that ATS complements, rather than replaces, human checks and routine maintenance, especially in extreme weather or heavy-load scenarios.
Types of automatic tire inflation systems and their components
There are several ATS configurations, ranging from OEM-installed units to aftermarket kits. Common components include a central controller, a compact air compressor, air reservoir, valve blocks at each wheel, pressure sensors, hoses, and a mounting frame. OEM ATS is usually tightly integrated with steering, braking, and the vehicle’s electrical architecture for optimal reliability. Aftermarket ATS offers flexibility for older vehicles or specialty applications but requires careful fitment and calibration. When evaluating options, consider compatibility with your vehicle's ECU, potential warranty implications, and whether the system supports your typical tire sizes and load conditions. A well-chosen ATS should provide uniform response times across wheels, minimize air leaks, and maintain consistent target pressures in varying temperatures.
ATS and vehicle performance: how pressure stability improves safety
Tire pressure stability influences rolling resistance, grip, braking distance, and steering stability. ATS helps keep each tire within its ideal envelope, reducing under- or over-inflation during peak loads or temperature swings. This stability can translate to more predictable handling during cornering and better fuel economy due to reduced drag from mis-sized pressures. It’s important to recognize that ATS does not eliminate the need for periodic tire checks or tire rotation. But with ATS, drivers experience a stronger baseline of tire performance across trips with different payloads and weather, which contributes to overall vehicle safety and efficiency. Tire Pressure Tips notes that ATS, when properly configured, can be a meaningful component of a proactive tire maintenance strategy.
How to assess ATS options: OEM vs aftermarket and installation considerations
Assessing ATS options starts with a clear understanding of your vehicle’s requirements and intended usage. OEM ATS integrates seamlessly with factory systems and typically preserves warranties, while aftermarket ATS offers flexibility for older or non-standard vehicles. Installation considerations include proximity to heat sources, accessibility for service, routing of lines to each wheel, and secure mounting of pumps and reservoirs. Before committing, verify wiring, fusing, and control interfaces to ensure safe, reliable operation. Expect a calibration phase to set target pressures per tire size and vehicle load. Budget for professional installation if you’re not comfortable with automotive electrical work.
Setup, calibration, and daily use: a practical guide
Once installed, calibration aligns each tire’s target pressure with the vehicle’s specifications and current load conditions. This typically involves setting the baseline pressures for cold tires, then validating adjustments at warm operating temperatures. The ATS controller will modulate airflow to meet the targets, constantly adjusting as you drive. For daily use, monitor the system via TPMS readings and the ATS interface if available. If you notice persistent pressure discrepancies, re-check connections, seals, and sensor readings. In many cases, a simple re-calibration after a tire service or work by a technician resolves the issue.
Maintenance, troubleshooting, and common issues to watch for
Regular inspection is essential with ATS: check hoses for wear cracks, confirm fittings are tight, and inspect the compressor for abnormal noise or overheating. Leaks can undermine performance, so apply sealant or replace worn components as needed. If the system fails to reach targets, verify power supply integrity and ensure the reservoir isn’t depleted. In some cases, a software update from the manufacturer or recalibration of the sensor array is required. Documentation of maintenance events helps diagnose intermittent faults when the vehicle returns to service.
Safety, warranties, and regulatory considerations for ATS
ATS installations must comply with vehicle safety standards and may influence warranty terms. If you install an aftermarket ATS, check the manufacturer’s warranty policy to avoid accidental voids. Handling high-pressure air components requires attention to secure mounting and proper battery isolation during work. While ATS is designed to improve safety by maintaining optimal tire pressure, it does not replace safe driving practices or routine tire maintenance such as tread depth checks. Always follow the vehicle manufacturer’s guidelines and consult a certified technician for complex installations.
Practical tips for owners: a DIY readiness checklist
- Verify vehicle compatibility and confirm whether your system is OEM or aftermarket. - Plan routing to keep lines away from heat sources and moving parts. - Calibrate targets to your tire sizes and typical loads. - Inspect lines and fittings weekly for signs of wear or leaks. - Cross-check TPMS readings after installation to validate performance. - Schedule periodic professional checks to ensure long-term reliability.
Tools & Materials
- ATS unit (OEM-compatible or aftermarket)(Include control module and valve block; verify compatibility with your vehicle.)
- Vehicle-specific mounting hardware(Brackets, screws, and mounting plates sized for your model.)
- 12V power harness/wiring kit(Include fuse tap and relay if needed for power management.)
- Air compressor or integrated pump(Self-contained or trunk/engine-compartment mounted.)
- Air lines and fittings(Tubing rated for automotive use; include quick-connects and adapters.)
- Pressure sensors (optional upgrade)(If not included in the ATS kit, add high-accuracy sensors per wheel.)
- Electrical connectors and weatherproof sealant(Protect connections from moisture and dust ingress.)
- Sealant tape and gasket sealant(Ensure airtight seals at all joints and fittings.)
- Torque wrench(Helpful for precise mounting fasteners.)

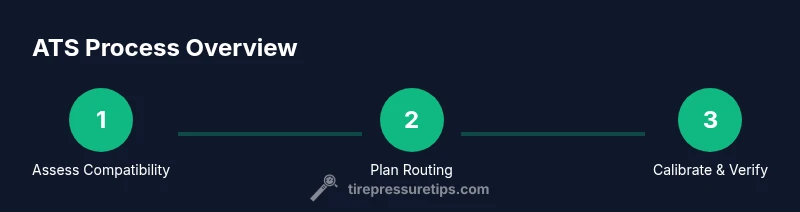

Steps
Estimated time: 2-4 hours
- 1
Assess compatibility
Check whether your vehicle supports ATS through the manufacturer, dealer, or documentation. Confirm any warranty implications before starting. This step ensures you choose a system that integrates cleanly with your vehicle's electronics.
Tip: Review the owner's manual and confirm if brake or stability systems rely on precise tire pressures that ATS could affect. - 2
Plan routing and mounting
Map out a route for hoses from the compressor to each wheel, and choose mounting locations away from heat, moving parts, and sharp edges. Plan reservoir placement for easy service access and minimal vibration.
Tip: Use protective sheathing on lines near hot surfaces and secure lines with multiple clamps to prevent wear. - 3
Disconnect power and prep surface
Isolate the vehicle battery and remove any covers needed to access mounting areas. Clean the mounting surfaces to ensure solid brackets and reduce vibration that can loosen connections.
Tip: Use a ground strap to avoid static buildup during wiring work. - 4
Mount compressor and reservoir
Secure the compressor and reservoir with the supplied brackets, tightening fasteners to the manufacturer’s torque spec. Ensure air paths are clear and that there is no kinking in lines.
Tip: Place the assembly where accidental contact won’t occur during service or maintenance. - 5
Run lines and connect to tires
Route air lines to each wheel assembly, avoiding pinch points. Install valve connections at each wheel and ensure airtight seals around fittings.
Tip: Label each line to prevent confusion when servicing or diagnosing later. - 6
Connect electronics and calibrate
Wire the ATS controller to the vehicle power source and connect to the sensors. Calibrate the system to matched target pressures per tire size and load conditions.
Tip: Keep a clean wiring loom and test for continuity before powering the system. - 7
Initial pressure test and adjustments
With cold tires, verify baseline pressures, then start the system and observe if pressures converge toward targets across all wheels. Make any required adjustments to the target values.
Tip: Perform a test drive to observe system response under load and at speed. - 8
Final verification and documentation
Check for leaks, secure all components, and record calibration values for future reference. Keep service logs to help diagnose any future pressure drift.
Tip: Store calibration data and a simple fault log with dates.
Frequently Asked Questions
What exactly is an automatic tire inflation system and how does it work?
An ATS automatically adjusts tire pressures toward predefined targets using a compressor, valve blocks, and a controller. It responds to pressure sensor data to add or release air as needed, helping maintain safe and consistent tire pressures.
An ATS automatically adjusts each tire’s pressure using sensors and a controller, keeping you at the target pressure for safer, steadier driving.
Should I install an ATS as OEM or aftermarket?
OEM ATS is typically integrated with the vehicle’s systems and may preserve warranties, while aftermarket ATS offers flexibility for older or nonstandard vehicles. Both aim to stabilize tire pressures but require careful compatibility checks.
OEM ATS integrates with factory systems; aftermarket options give you more choices but need careful fitment and calibration.
Will an ATS interfere with TPMS or other tire systems?
ATS is designed to complement TPMS by maintaining target pressures. In some cases, calibration may be required after installation to ensure TPMS readings stay accurate.
ATS works with TPMS after proper calibration; you may need a recalibration after installation.
Can ATS perform well in extreme temperatures or varying loads?
ATS accounts for temperature and load changes by adjusting targets as needed, but calibration is important for extremes. Verify system specs for your climate and typical cargo.
Temperature changes affect tire pressure; an ATS can adapt, but you may need to recalibrate for extreme conditions.
What maintenance does an ATS require?
Regular inspections of hoses and fittings for leaks, keeping connections clean, and periodic calibration are advised to maintain performance.
Inspect lines and seals regularly, and re-calibrate when you service tires or wheels.
What are common signs that my ATS is not functioning correctly?
Frequent pressure drift, audible leaks from lines, abnormal compressor noise, or a persistent alert from the ATS controller indicate issues to diagnose.
If you notice pressure drift or leaks, inspect hoses and seals; consult a technician if it persists.
Watch Video
What to Remember
- Verify ATS compatibility with your vehicle.
- Plan routing to avoid heat and hardware damage.
- Calibrate ATS targets to your tire sizes and loads.
- Inspect lines and fittings regularly for leaks.
- Cross-check TPMS data after installation to verify accuracy.
