Tire Pressure Wheel Sensor: A Practical TPMS Guide
Learn how the tire pressure wheel sensor powers TPMS, diagnose common faults, and maintain your system with practical steps, tools, and safety tips from Tire Pressure Tips.
Understanding the tire pressure wheel sensor and TPMS helps you prevent underinflation, extend tire life, and stay safer on the road. This quick answer defines the sensor, explains direct versus indirect TPMS, and highlights common fault signs. According to Tire Pressure Tips, reliably reading tire pressure starts with proper sensor function and cold-tire measurements, followed by a straightforward maintenance routine.
What is a tire pressure wheel sensor?
A tire pressure wheel sensor is a compact device mounted inside each wheel or on the valve stem that measures air pressure and, in many systems, temperature. In direct TPMS, each sensor reports its own pressure to the vehicle's TPMS controller. In indirect TPMS, the system infers pressure differences from wheel speeds and ABS data. Understanding this distinction helps you diagnose why a TPMS warning appears. The tire pressure wheel sensor is a critical part of safe driving because accurate readings promote even wear, better fuel economy, and safer handling.
How TPMS uses tire pressure wheel sensor data
TPMS relies on tire pressure wheel sensor data to determine whether a tire is under- or over-inflated. Direct TPMS uses individual sensor transmissions to trigger warnings when readings fall outside manufacturer specifications. Indirect TPMS uses wheel speed sensors to detect differences that suggest pressure changes, without sending direct sensor data. Regular checks against the vehicle’s recommended pressure help prevent false alerts and ensure stable handling in corners and braking.
Common issues with tire pressure wheel sensor
Common problems include a dead sensor battery, a damaged sensor stem or valve, corrosion at the valve area, or a sensor that was disturbed during a tire service. Wheel swap or tire replacement can misalign or mislearn sensors, causing repeated warnings. Environmental exposure, road salt, and curb impacts can also degrade sensor integrity. When in doubt, replace a failing sensor with a compatible unit and re-learn the system.
Reading TPMS warnings and diagnosing common faults
Start by noting the exact warning and inspecting the corresponding tire. Use a calibrated digital tire pressure gauge to verify actual pressures when tires are cold. If readings match the placard, the TPMS warning may be sensor-related; use an OBD-II scanner with TPMS capability to pull fault codes and sensor IDs. Some vehicles require a relearn sequence after servicing or sensor replacement—consult the manual or a professional.
Replacing or resetting a tire pressure wheel sensor
If a sensor is confirmed failed, replace it with a compatible unit designed for your vehicle. Reinstall the wheel, torque the lug nuts to manufacturer specification, and perform a TPMS relearn if required by your vehicle. After replacement, verify all readings with a gauge and ensure the TPMS warning clears. If the warning persists, a professional diagnostic may be necessary to rule out related wiring or module issues.
Maintaining tire pressure wheel sensor effectiveness
Regular maintenance starts with keeping tires inflated to the vehicle’s recommended values and checking sensor seals during tire service. Rotate tires as recommended and have sensors inspected for corrosion or damage during every change. If you notice frequent TPMS warnings, consider a sensor health check with a qualified technician and plan replacements before they fail unexpectedly.
Temperature effects on tire pressure readings and sensors
Ambient temperature shifts can cause tire pressures to rise or fall, impacting TPMS readings. Colder conditions typically reduce tire pressure, triggering warnings if readings approach the threshold; warmer days can have the opposite effect. For accuracy, check pressures when tires are cold and recheck after a few miles of driving to allow readings to settle.
Budgeting for TPMS components and maintenance
Costs vary by vehicle and region, and many shops offer TPMS service as part of a tire package. When budgeting, consider future sensor replacements, potential relearn fees, and the need for diagnostic tools. Always request a clear estimate that distinguishes parts, labor, and any relearn charges.
Common mistakes to avoid and best practices
Avoid relying on memory rather than manufacturer guidelines; always compare readings to the placard. Don’t reset TPMS without proper steps after tire work. Ensure you diagnose sensor issues rather than masking warnings with quick inflation. Following best practices reduces the risk of underinflation, uneven wear, and unexpected tire failures.
Tools & Materials
- Digital tire pressure gauge(Calibrated; read in psi/kPa per vehicle specification)
- Soapy water spray(Test seals at valve stems and sensor seals for leaks)
- Vehicle owner's manual(Check TPMS type and reset/ relearn procedure)
- OBD-II scanner with TPMS function(Helpful for reading sensor IDs and relearn codes)
- Replacement TPMS sensor (if needed)(Only if a sensor is confirmed failed and compatible with the vehicle)
- Torque wrench (for wheel work)(Use when reinstalling wheels to proper lug-nut torque)

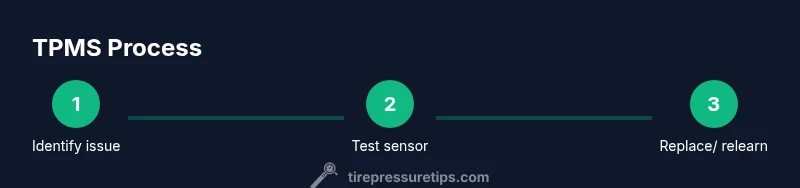

Steps
Estimated time: 60-90 minutes
- 1
Prepare your tools and vehicle
Assemble the recommended tools and review the vehicle’s TPMS guidelines in the owner's manual. Ensure the car is on a level surface and the tires are cold before any measurement.
Tip: Have the wheel keys and torque specs handy; plan your work area to avoid distractions. - 2
Check tire pressures with a calibrated gauge
Measure each tire's pressure when cold using a reliable gauge. Compare the readings to the placard on the door jamb or owner’s manual; record any variances.
Tip: Record readings for each tire to track changes over time. - 3
Inspect tires and sensor stems for damage
Visually inspect valve stems and sensors for cracks, corrosion, or misalignment. Use soapy water to test for leaks around the stems and seals.
Tip: Do not reuse damaged seals; replace compromised components promptly. - 4
Scan for TPMS fault codes
Connect an OBD-II scanner with TPMS capability to retrieve fault codes and sensor IDs. Note which sensor IDs correspond to each wheel to guide maintenance.
Tip: Some vehicles require a relearn sequence after service—check the manual. - 5
Test sensor signal integrity at the wheel
If you can access the sensor, verify it is firmly mounted and not damaged. Check for battery life indicators if your tool provides them.
Tip: Ensure the sensor is seated properly to avoid intermittent readings. - 6
Reset or relearn TPMS after adjustments
If your vehicle supports TPMS relearn, use the onboard menu or a scanner to retrain sensors after replacement or significant tire work.
Tip: Follow the exact sequence in the manual to ensure a successful relearn. - 7
Replace a failed sensor if needed
If a sensor is confirmed failed, install a compatible replacement, reinstall the wheel, and re-check all readings with a gauge.
Tip: Avoid mixing sensor types or brands that aren’t compatible with your system. - 8
Re-check pressures and confirm readings
Inflate tires to the recommended pressure and re-check after a few miles of driving to let the readings settle.
Tip: Drive a short distance before concluding the sensor is faulty. - 9
Document and monitor TPMS status
Keep a log of readings, repairs, and relearns. If warnings recur, seek professional diagnosis to prevent future tire issues.
Tip: Regular monitoring helps catch drifting pressures early.
Frequently Asked Questions
What is the tire pressure wheel sensor and how does TPMS use it?
The tire pressure wheel sensor monitors each tire's pressure and sends signals to the TPMS controller. When a reading drifts from the recommended range, the system flags a warning to prompt timely inspection.
TPMS uses wheel sensors to monitor air pressure and warn you if a tire is under or overinflated. Check your tires when the warning appears.
Can I replace a TPMS sensor myself?
Replacing a TPMS sensor is possible for some vehicles with the right tools and knowledge, but it can be vehicle-specific. Ensure compatibility and follow relearn procedures to prevent further warnings.
Yes, in many cases you can replace a TPMS sensor, but you must match the sensor to your vehicle and complete the relearn.
Why does my TPMS light stay on after inflating tires?
A persistent TPMS light can indicate a faulty sensor, a failed relearn, or a sensor that isn’t reporting correctly. Inspect, test with a scanner, and perform a relearn if required.
If the light stays on after inflating, you may have a faulty sensor or a relearn issue needing a scan.
How do I reset TPMS after rotating tires?
Many vehicles require a relearn procedure after tire rotation. Use the vehicle’s TPMS menu or an OBD-II scanner to retrain the sensors.
Most cars need a relearn after rotation; follow the manual or use a scanner to complete it.
Do temperature changes affect TPMS readings?
Yes. Temperature changes can cause pressure fluctuations, which may trigger warnings. Check pressures when cold and re-check after driving to settle readings.
Temperature changes can drift readings; always confirm with a cold-pressure check.
What should I do if the TPMS battery dies?
TPMS batteries typically require professional replacement or sensor replacement. Consult a tire service professional to avoid damaging the wheel or compromising safety.
If the sensor battery dies, a professional replacement is usually needed.
Watch Video
What to Remember
- Identify whether your system uses direct or indirect TPMS
- Verify tire pressures with a calibrated gauge
- Reset or relearn TPMS after wheel work
- Address warnings promptly to avoid uneven wear
- Regular maintenance reduces tire-related costs
